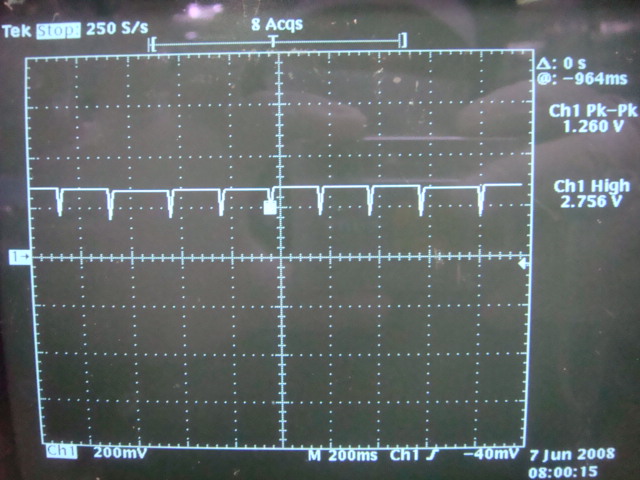

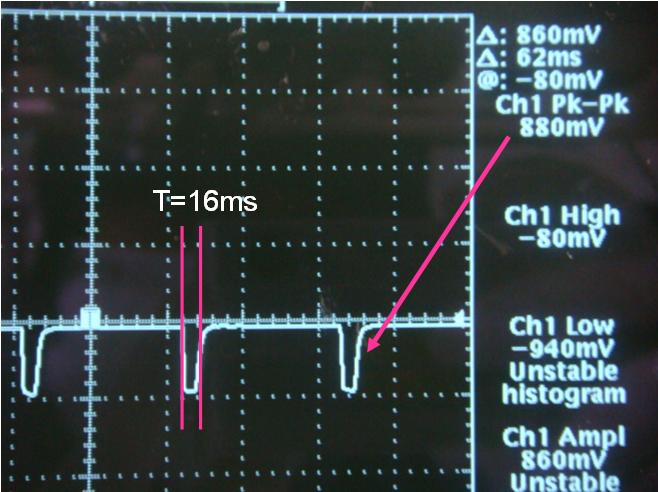

Could you help me about my project? I dose real time voltage monitor ADC by PIC16F877 and send the data value to PC (serial port). It’ seems a big problem about the sampling rate? I’m comparing my project between boards (ETT16F877) with Oscilloscope but result error very much. Need you help me for suggestions? Below picture my soft code PIC and VB6.(Sorry I'm not good english )
CCS for PIC.
#include <16F877.H>
#define TxD PIN_C6
#define RxD PIN_C7
#define CLOCK_SP 10000000
#fuses HS
#fuses NOLVP,NOWDT
#fuses NOPROTECT
#device ADC=10
#use delay (clock=CLOCK_SP)
#use rs232(baud=9600,xmit=TxD,rcv=RxD)
#use fast_io(A)
#define Vbe 0.0048875855327468230694037145650049 // Vref/1023 (5/1023)
void main(void) {
int16 value;
float volt;
setup_adc_ports(0x82); // A0 A1 A2 A3 A5 E0 E1 E2 Ref=Vdd
setup_adc(ADC_CLOCK_INTERNAL); // Clock RC
set_adc_channel(0); // Read Analog input RA0
do{
value = Read_ADC();
delay_us(10);
volt = Vbe*(float) value;
printf("\n\r%f",volt);
} while (TRUE);
}
