Got myself in to a small project and I'm trying to avoid any more mistakes being the electronic wiring novice. If you have a moment and can offer advice, please read on.

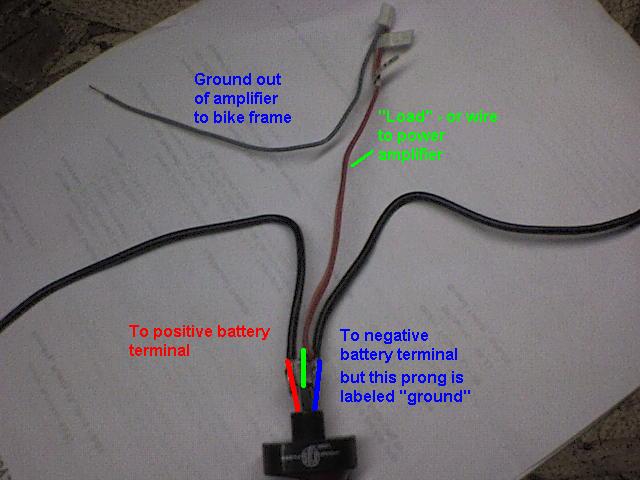

Below is a sad example of a picture product by my cell phone showing the setup. I've labeled everything as best I can, but if more information is needed please advise and I'll post back.
I'm in the middle of building a small stereo system housed in a fork bag for my motorcycle.
I have some 10ga wire running directly from the + post on my battery (15amp in-line fuse in place) to the "POWER" prong on the on/off switch (shown in red below).
I have the center prong going directly to the plug on the amp providing power to the unit (in green below).
And then finally, the right-hand prong I currently have running back to the battery negative post (in blue below), and here is where I think I'm going wrong.
This blue line prong is labeled "Ground"... which leads me to believe I should ground the wire to the frame as I have the ground wire from the amp. For some reason I've run this wire to the negative battery terminal under the thought process that I have the power wire coming in to the switch from the positive battery terminal, so I have to have the ground wire going back to the negative terminal.
Should I ground the wire to the frame as the switch is labeled (and how common sense is prompting me to post this for advice), or am I right in running it back to the battery?
Sorry for the elementary question -- it took me forever to find a forum for wiring so I hope you all bear with me here.
Thanks in advance.
Regards,
Bryan
