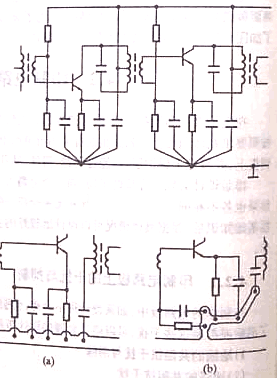

PCBWING New Member Jun 4, 2010 #21 I remember when I was at school the teacher talked about "Single point ground" Attachments 1.gif 31.1 KB · Views: 198
Mikebits Well-Known Member Jun 5, 2010 #22 Can I recommend this book? Amazon.com: High Speed Digital Design: A Handbook of Black Magic (0076092032038): Howard Worth every penny. Great book by a brilliant man.
Can I recommend this book? Amazon.com: High Speed Digital Design: A Handbook of Black Magic (0076092032038): Howard Worth every penny. Great book by a brilliant man.
Mikebits Well-Known Member Jun 5, 2010 #23 At some point you do need to connect the grounds together for a low impedance path. This is usually done at the power connector source. Your image seems to represent this technique. I think they call it star grounding or something like that.
At some point you do need to connect the grounds together for a low impedance path. This is usually done at the power connector source. Your image seems to represent this technique. I think they call it star grounding or something like that.

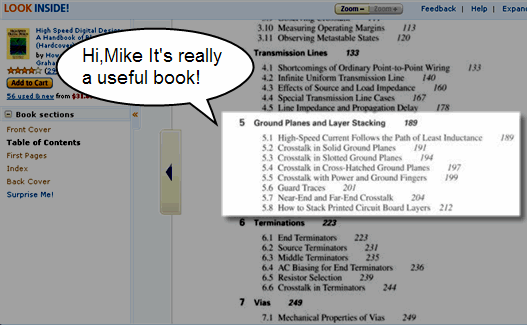

PCBWING New Member Jun 5, 2010 #24 This book is very good, very comprehensive. I will go to the library to see if I can borrow it. Attachments b.gif 36 KB · Views: 265
