L louieville New Member Jun 29, 2005 #1 can you send me datasheet about AN214Q amp. I really need it for a school project. please..

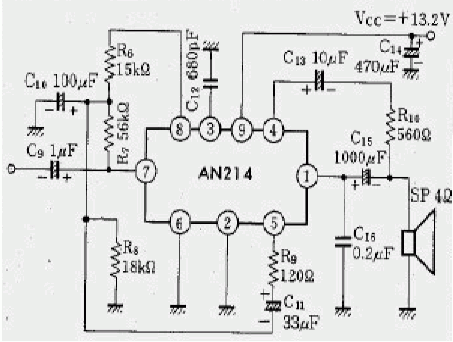

hotwaterwizard Active Member Jun 30, 2005 #2 Here is the best I could do. AN214Q Generic Replacement NTE1058 SK3459 AN214 Vcc 6-18 Pout,4.4 W RL,4 ohm Ft,-50Hz-17kHz Icc,20mA pkg SIP2-9 MATSUSHITA Attachments an214p_image.gif 6.1 KB · Views: 2,889 an214.gif 5.2 KB · Views: 5,096
Here is the best I could do. AN214Q Generic Replacement NTE1058 SK3459 AN214 Vcc 6-18 Pout,4.4 W RL,4 ohm Ft,-50Hz-17kHz Icc,20mA pkg SIP2-9 MATSUSHITA

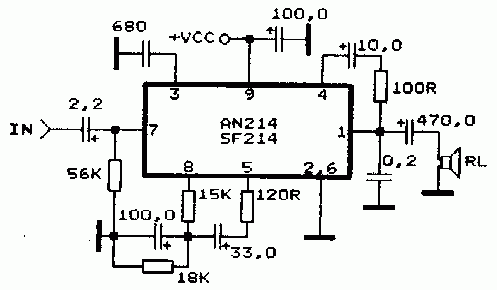

hotwaterwizard Active Member Aug 18, 2005 #3 One More Picture Attachments an214_278.gif 38.2 KB · Views: 5,751
hotwaterwizard Active Member Jan 2, 2009 #5 AN214 Amplifier IC https://www.electro-tech-online.com/custompdfs/2009/01/AN214PDF.pdf AN214 Japaneese Datasheet **broken link removed** **broken link removed** **broken link removed** Last edited: Jan 2, 2009
AN214 Amplifier IC https://www.electro-tech-online.com/custompdfs/2009/01/AN214PDF.pdf AN214 Japaneese Datasheet **broken link removed** **broken link removed** **broken link removed**

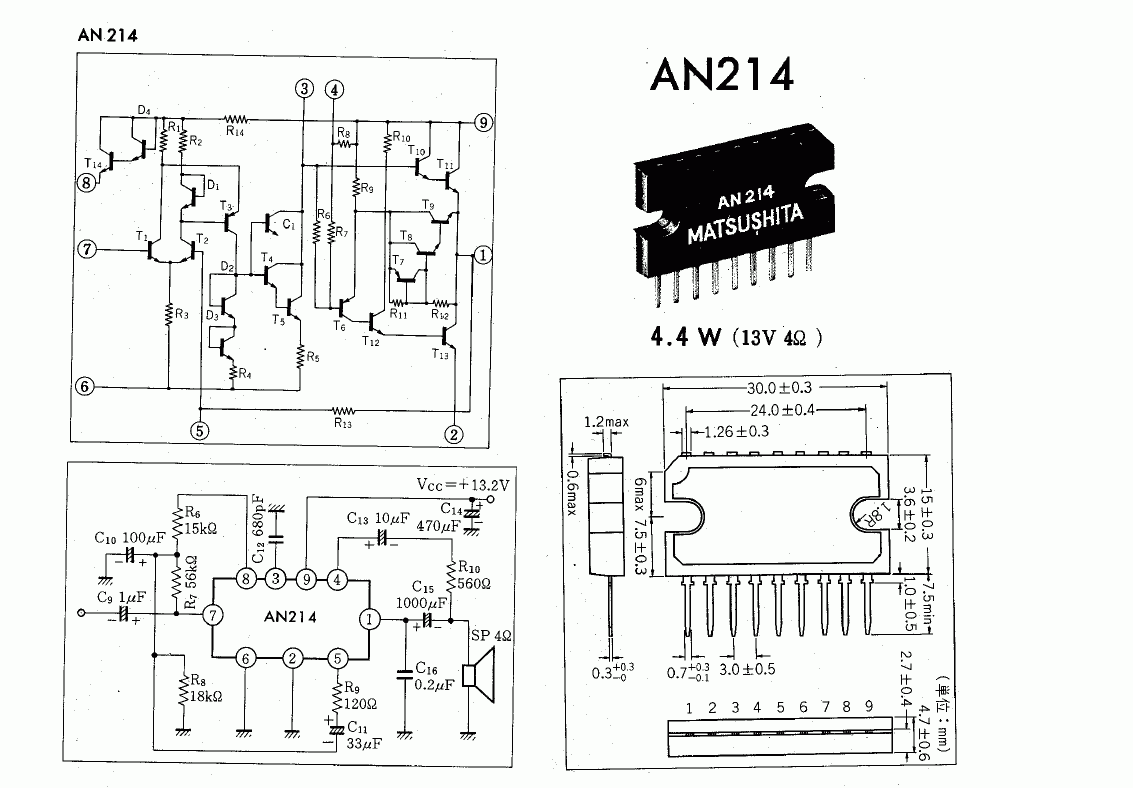

hotwaterwizard Active Member Jan 2, 2009 #6 Here is the important stuff from the Japaneese Datasheet Attachments AN214_Amp.gif 39.1 KB · Views: 4,755
J jun2010 New Member Jun 30, 2010 #7 kindly show me a PCB layout schematic diagram an214 coz it is my project
hotwaterwizard Active Member Jul 1, 2010 #8 ECG1058 is the same Here is that Datasheet with PC Board design Attachments ECG1058.pdf 110.4 KB · Views: 1,086
S shokjok Member Jul 1, 2010 #9 jun2010 said: kindly show me a PCB layout schematic diagram an214 coz it is my project Click to expand... The manufacturer's suggested PCB layout is a guideline. Your project could be interpreted as plagiarism if your efforts are discovered. If this is truly your project, experiment with the values shown and design your own PCB.
jun2010 said: kindly show me a PCB layout schematic diagram an214 coz it is my project Click to expand... The manufacturer's suggested PCB layout is a guideline. Your project could be interpreted as plagiarism if your efforts are discovered. If this is truly your project, experiment with the values shown and design your own PCB.
