Automatic Battery Charger With SCR

M

minnik

New Member

• May 20, 2007

• #1

I am looking for it since one month. But i couldnt find yet

How can i do it ? Do you have this circuit ?



O

on1aag

New Member

• May 20, 2007

• #2

Hi Minnik,

I didn't have to look for it so long to find it but it's probably not
the right one, but here it is.

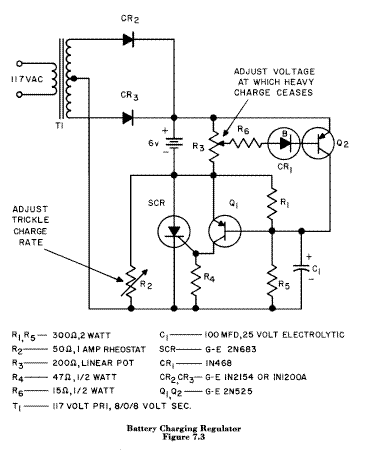

For charging a 12 volt battery, a 300 ohm 1 watt resistor should
be inserted in the collector of Q2, R3 should be increased to 400
ohms and the secondary voltage of T1 should be doubled.

on1aag.



Attachments

• SCR controlled battery charger.GIF

  11.4 KB · Views: 905

Gayan Soyza

Active Member

• May 20, 2007

• #3

What batteries you are speaking about?

NIMH
NICD
SLA
Li ION

For different batteries you need different chargers.



M

minnik

New Member

• May 21, 2007

• #4

Thanks. On1aag

Mr.Gayan Soyza;
its a homework about SCR.
its unimportant what batteries.
the circuit must have SCR.
if you have a simple circuit batery charger with scr. may you give it to me.



Optikon

New Member

• May 21, 2007

• #5

minnik said:

I am looking for it since one month. But i couldnt find yet

How can i do it ? Do you have this circuit ?

Click to expand...

You looked for a month and it is a homework problem? Isn't it _way_ past due? Why won't you work it out yourself anyhow?



M

minnik

New Member

• May 21, 2007

• #6

because. i colud't do it. i tried in ewb and isis for it. and after i started to looking for.
thanks for all reply.



Gayan Soyza

Active Member

• May 22, 2007

• #7

Here is one.You can find many circuits in google.
type "SLA Charger"
**broken link removed**

here is the original link

http://www.talkingelectronics.com/te_interactive_index.html

another one
http://www.aaroncake.net/circuits/charger2.asp
**broken link removed**
