Datasheet For MPS-U10

[shermaine]

Anyone got the spec from motorola for MPS-U10?
Thanks!!



[hotwaterwizard]

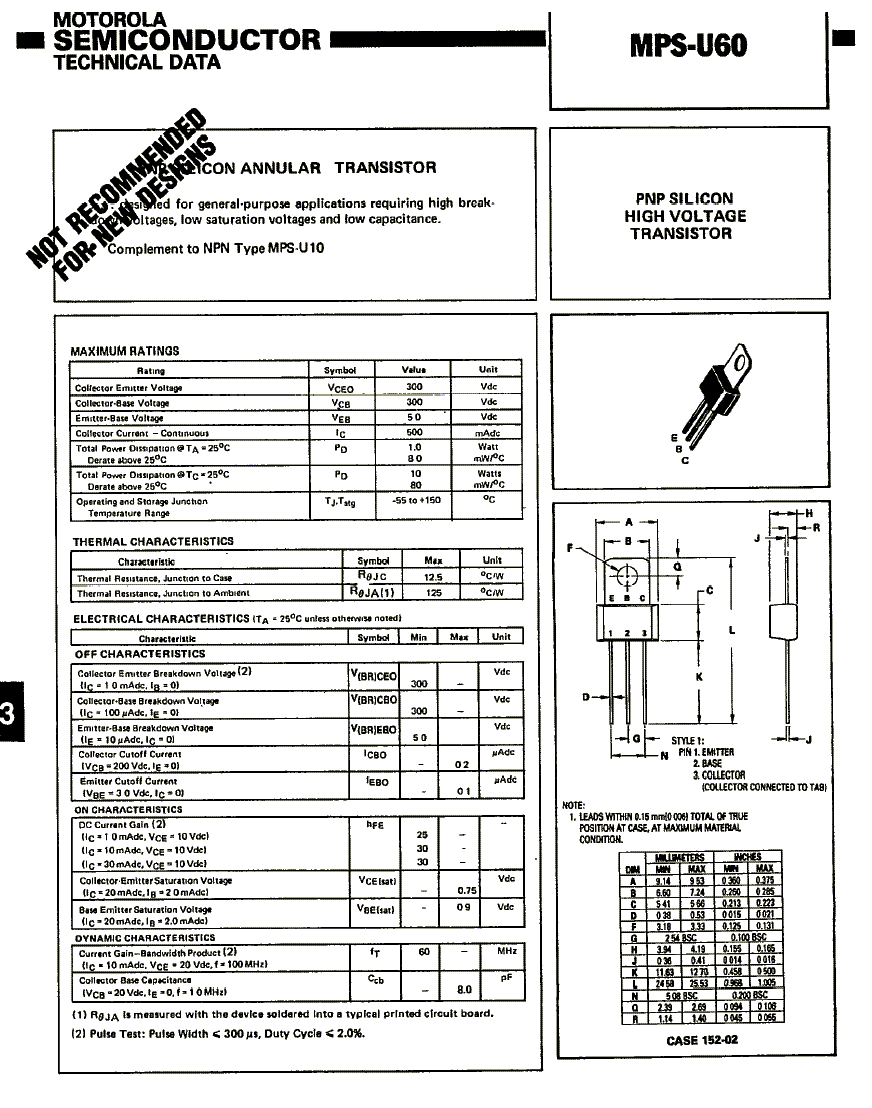

I found MPSU60 Datasheet which is the PNP compliment of it.



[hotwaterwizard]

Motorola "Uniwatt package" transistors
NPN PNP Amps Volts min hFE @ mAmps fT(MHz)
MPSU10 MPSU60 0.5 300 30 @ 3 45
Maximum power = 10 Watts @ 25 degrees Celcius



Polarity NPN
Vceo (V) 300
hFE min @ Ic (mA) 30
Pd (W) 10
ft (MHz) 45
Package Styles TO-252





Cross reference
MPSU10 NTE191 SK3232 BD232 BD410
ECG191 2N6558 AS S SAME PIN-OUT DI PACKAGE TO 202


Part Number = MPS-U10
Description = Si NPN Power Bipolar Junction Transistor
Manufacturer = Various
V(BR)CEO (V) = 300
V(BR)CBO (V) = 300
I(C) Abs.(A) Collector Current = 500m
Absolute Max. Power Diss. (W) = 1.0
I(CBO) Max. (A) = 200n
@V(CBO) (V) (Test Condition) = 200
V(CE)sat Max.(V) = .75
@I(C) (A) (Test Condition) = 30m
@I(B) (A) (Test Condition) = 3.0m
h(FE) Min. Static Current Gain = 25
@I(C) (A) (Test Condition) = 1.0m
@V(CE) (V) (Test Condition) = 10
f(T) Min. (Hz) Transition Freq = 45M
@I(C) (A) (Test Condition) = 10m
@V(CE) (V) (Test Condition) = 20
C(obo) (Max) (F) = 3.0p
@V(CB) (V) (Test Condition) = 20
@Freq. (Hz) (Test Condition) = 1.0M
Package = TO-202var
Military = N



[hotwaterwizard]

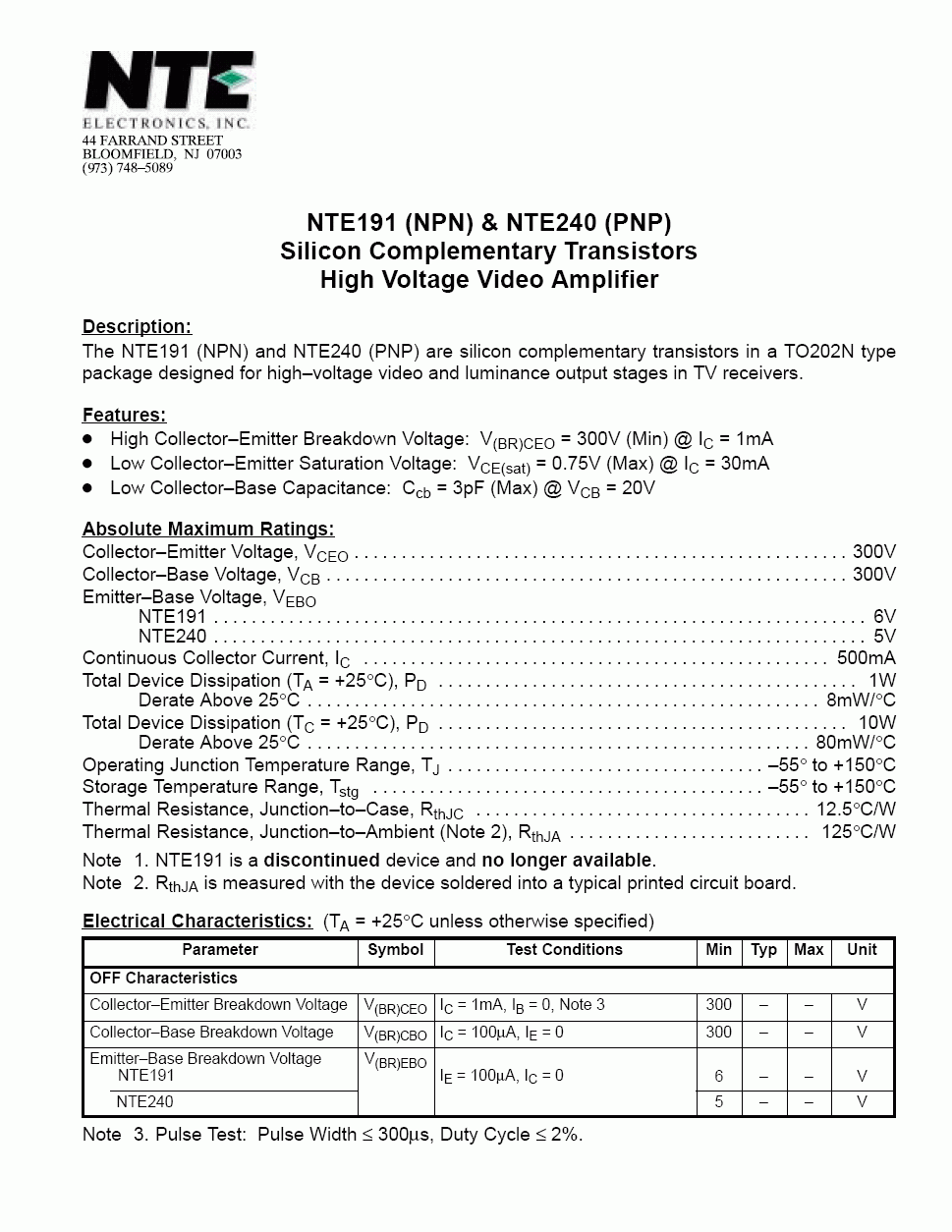

Here is NTE191 Datasheet . It is the Generic Replacement.



[hotwaterwizard]

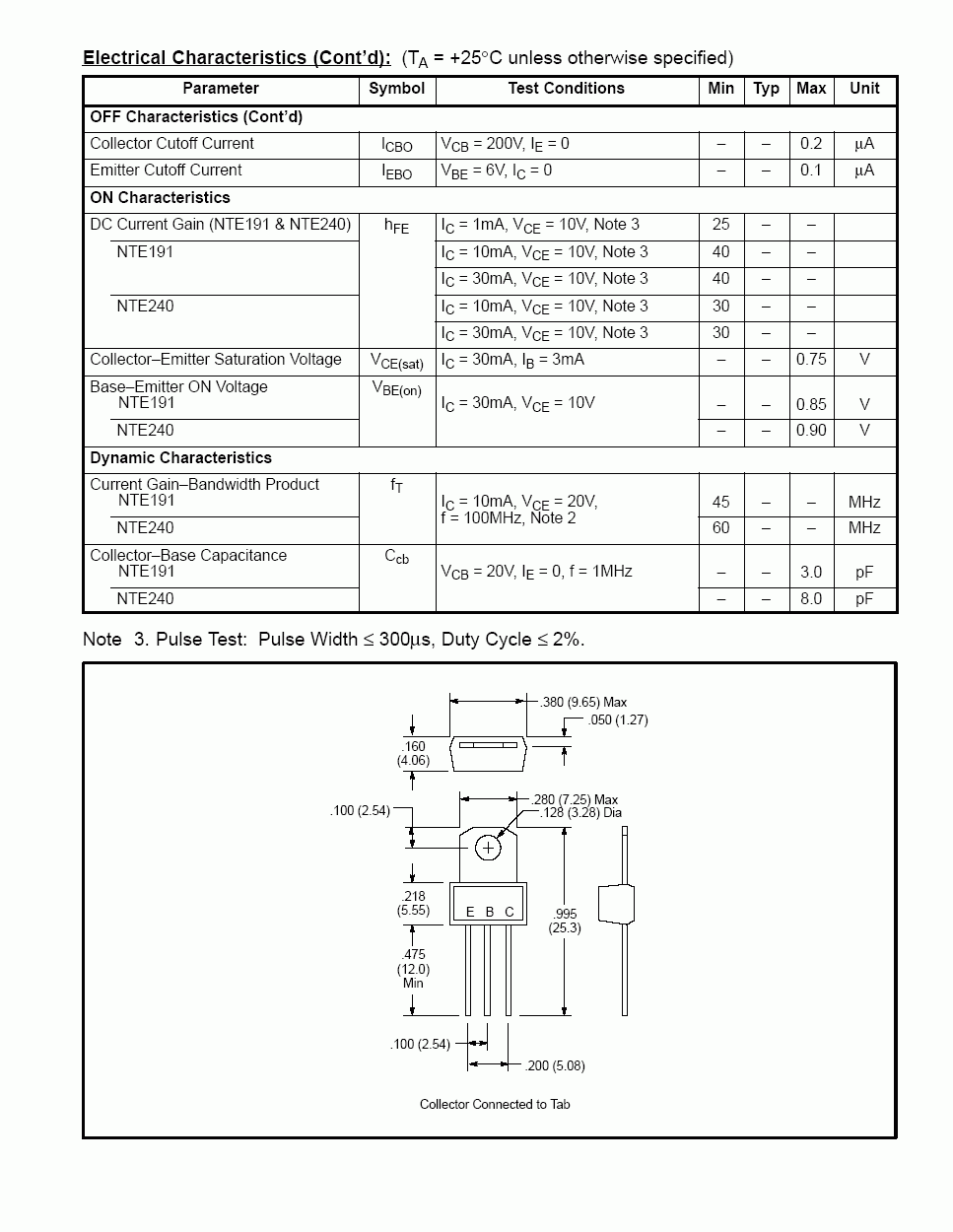

Here is a Different Format
