design xor gate using minimum no. of cmos & pmos

Status
Not open for further replies.

shashup3558

New Member
this is my electronics project. i have to design an ex-or gate using minimum number of cmos and pmos.pleeeeeeese help!!!!

Here's an easy one. All nand gates can be replacet with nor gates.

Seckond if you want to use standalone cmos. I found a way to use two bjt's, three resistors and one diode. I guess you can use two cmos as well. I guess it will work if you put an diode over gate-drain on each cmos.


Attachments

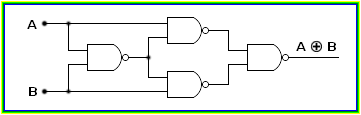

  • XOR_4x_nand.png
    1.2 KB · Views: 638
  • EX_ELLER.GIF
    503 bytes · Views: 1,805
Last edited:
