T Tryman New Member Aug 22, 2024 #1 Hi, can anyone help me find a readily available replacement for this please.
danadak Well-Known Member Most Helpful Member Aug 22, 2024 #2 Larger pic of board.....? Upvote 0 Downvote
T Tryman New Member Aug 22, 2024 #3 Pic of board below ., it’s from a grooming brushless blower drier . 3 transistors have been removed, ready for replacement. Upvote 0 Downvote
Pic of board below ., it’s from a grooming brushless blower drier . 3 transistors have been removed, ready for replacement.
danadak Well-Known Member Most Helpful Member Aug 22, 2024 #4 Might be this part, maybe trace a couple of pins over to the mosfets for confirmation..... https://www.infineon.com/dgdl/Infineon-IR2103-DataSheet-v01_00-EN.pdf?fileId=5546d462533600a4015355c7b54b166f Regards, Dana. Upvote 0 Downvote
Might be this part, maybe trace a couple of pins over to the mosfets for confirmation..... https://www.infineon.com/dgdl/Infineon-IR2103-DataSheet-v01_00-EN.pdf?fileId=5546d462533600a4015355c7b54b166f Regards, Dana.
T Tryman New Member Aug 22, 2024 #5 Many thanks, physical dims are spot on and tracing seems to confirm, but how do I know the internal spec is the same ? Did you find it as compatible ? Upvote 0 Downvote
Many thanks, physical dims are spot on and tracing seems to confirm, but how do I know the internal spec is the same ? Did you find it as compatible ?
danadak Well-Known Member Most Helpful Member Aug 22, 2024 #6 Guess on my part given you need mosfet drivers for that application, and 4 digit part number rung a bell in my fat head. You could power one of those parts up on bench, and confirm functionality sort of. Upvote 0 Downvote
Guess on my part given you need mosfet drivers for that application, and 4 digit part number rung a bell in my fat head. You could power one of those parts up on bench, and confirm functionality sort of.

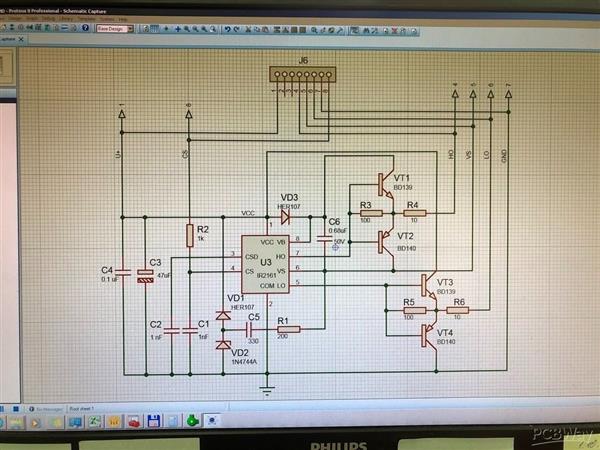

A aliarifat794 Active Member Aug 23, 2024 #7 Maybe this is a half-bridge driver. https://www.infineon.com/dgdl/Infin...N.pdf?fileId=5546d462533600a4015355c7b54b166f Though the marking is not the same. The datasheet says IR2103 but your pic says IT2103. However, the pinout is the same. You can use IR216 as an alternative. Half-bridge driver on IC IR2161 - Share - PCBWay Hello, Thank you. Very good workmanship. I am satisfied. This board is a half-bridge driver for a switching power supply. Best regards, Sergey. www.pcbway.com Upvote 0 Downvote
Maybe this is a half-bridge driver. https://www.infineon.com/dgdl/Infin...N.pdf?fileId=5546d462533600a4015355c7b54b166f Though the marking is not the same. The datasheet says IR2103 but your pic says IT2103. However, the pinout is the same. You can use IR216 as an alternative. Half-bridge driver on IC IR2161 - Share - PCBWay Hello, Thank you. Very good workmanship. I am satisfied. This board is a half-bridge driver for a switching power supply. Best regards, Sergey. www.pcbway.com
