Help needed to identify component for Sony MP-CL1 pocket projector

Status
Not open for further replies.

jacob61992

New Member
Hello,

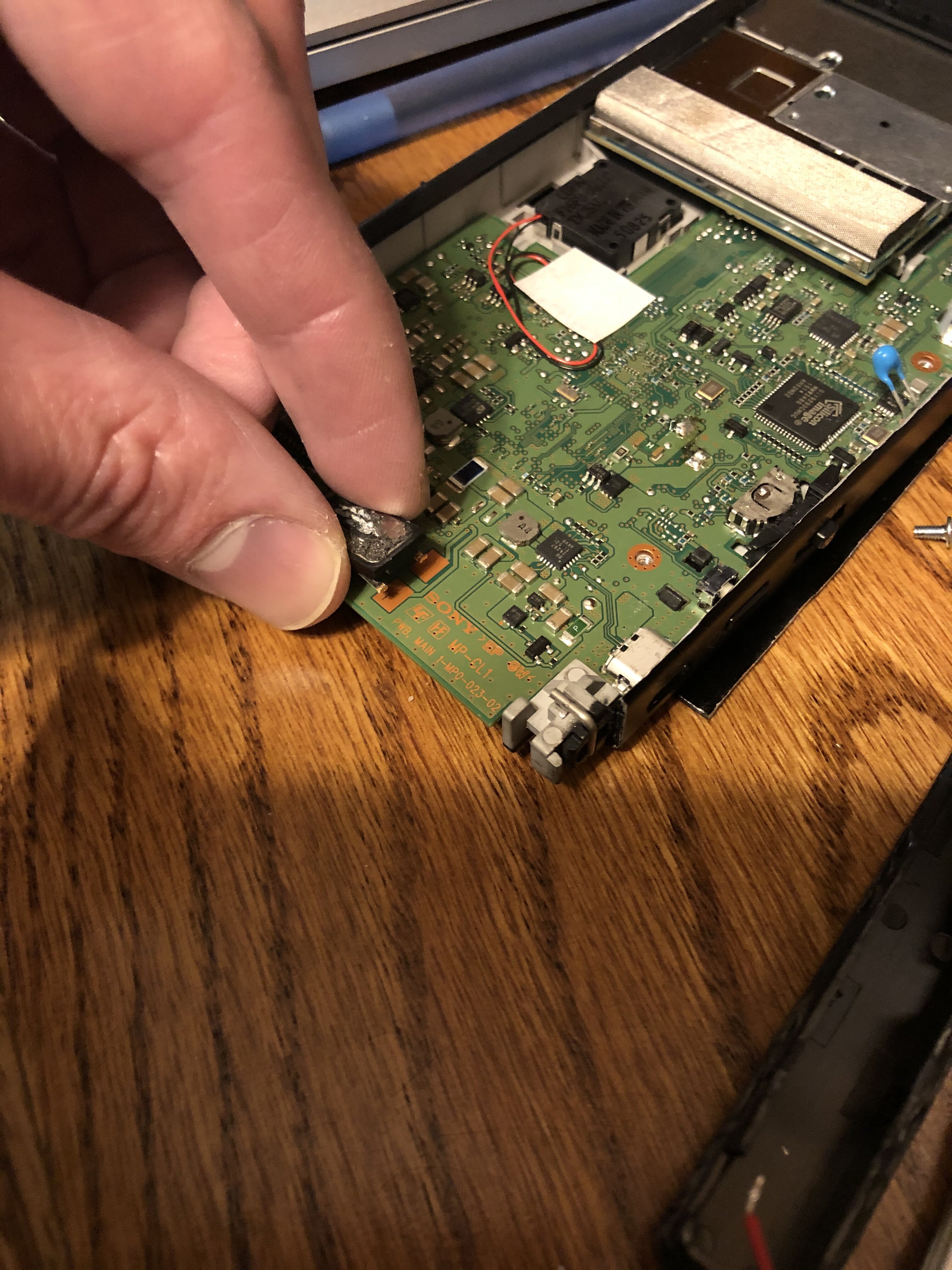

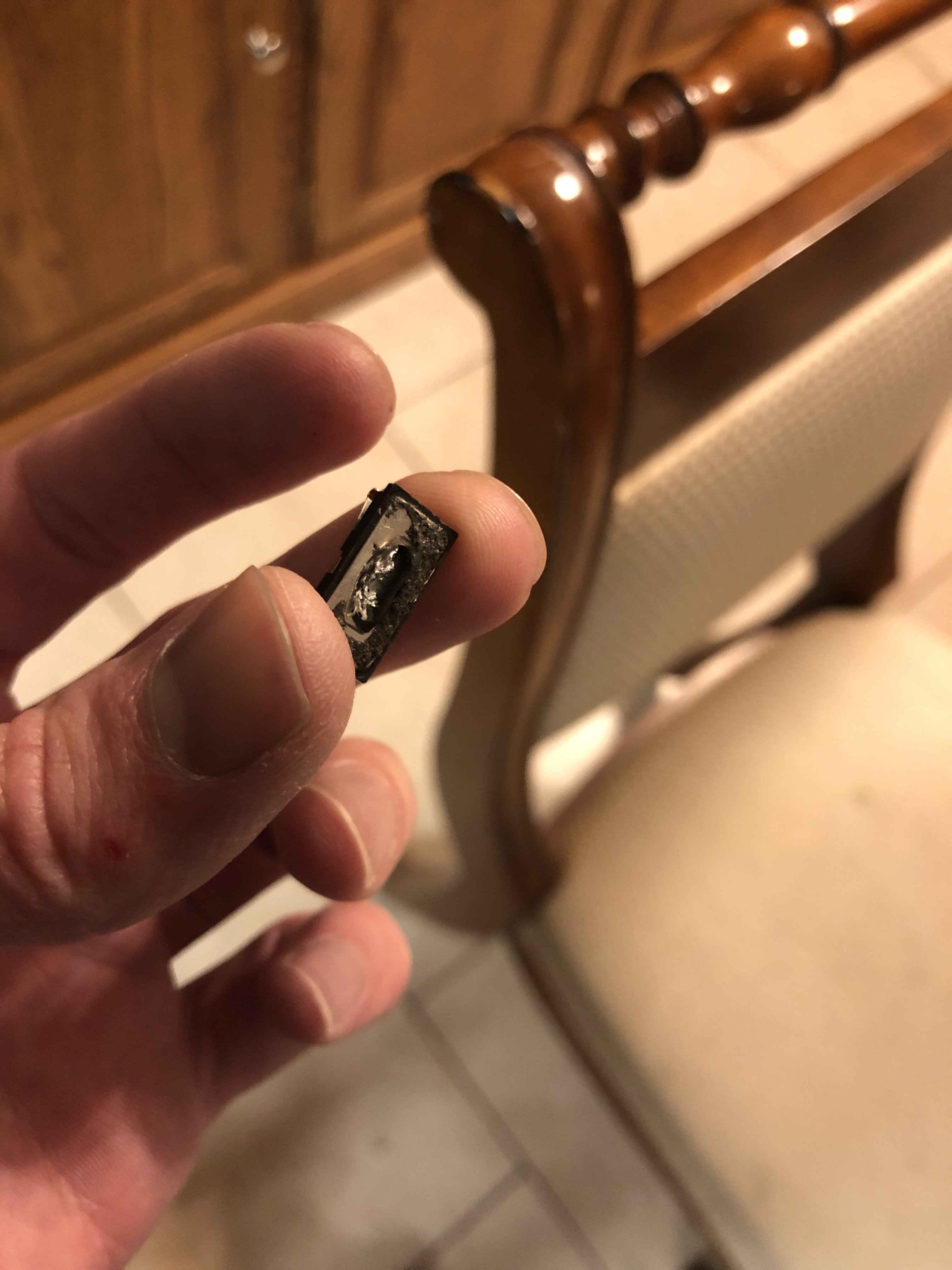

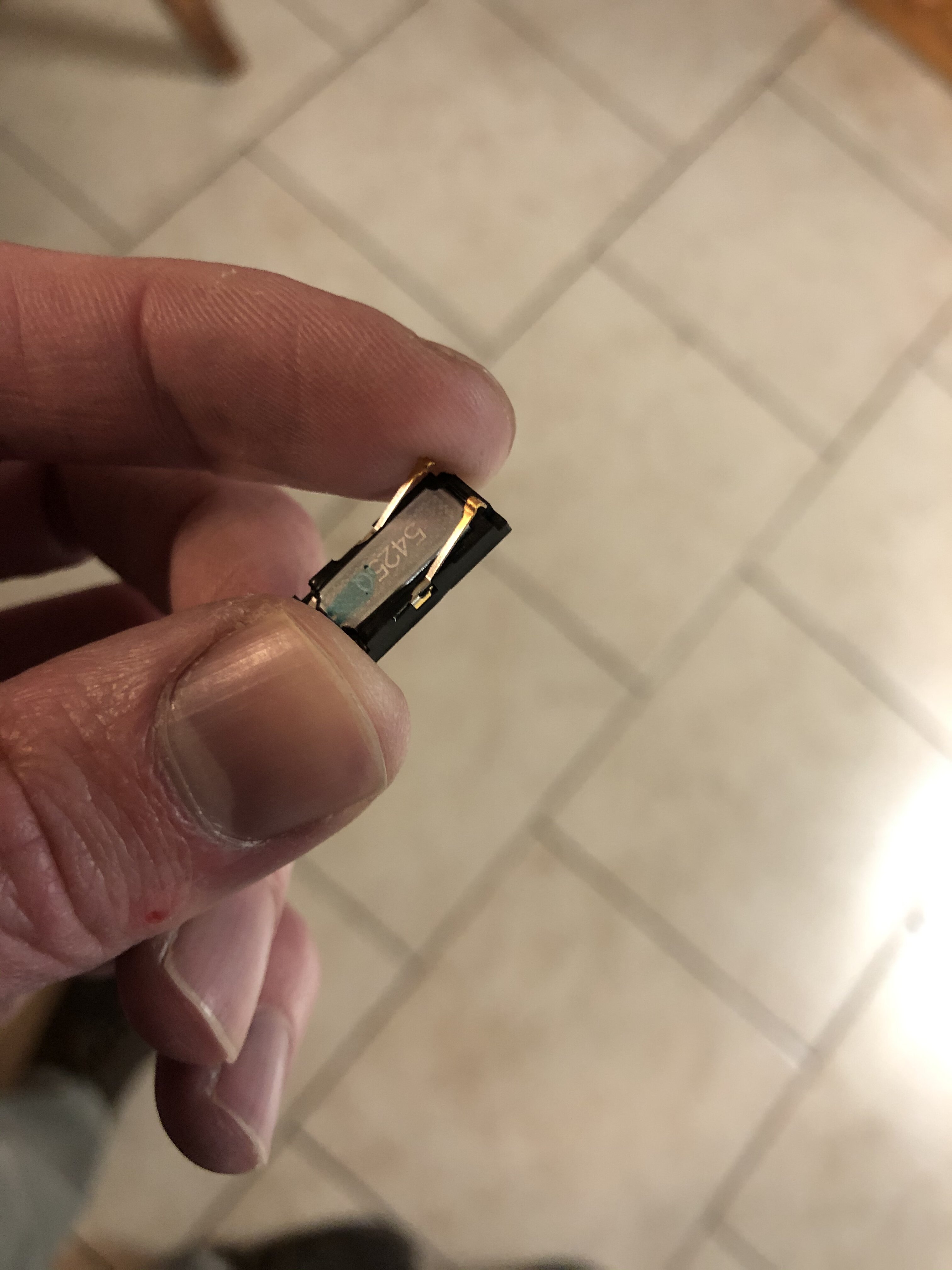

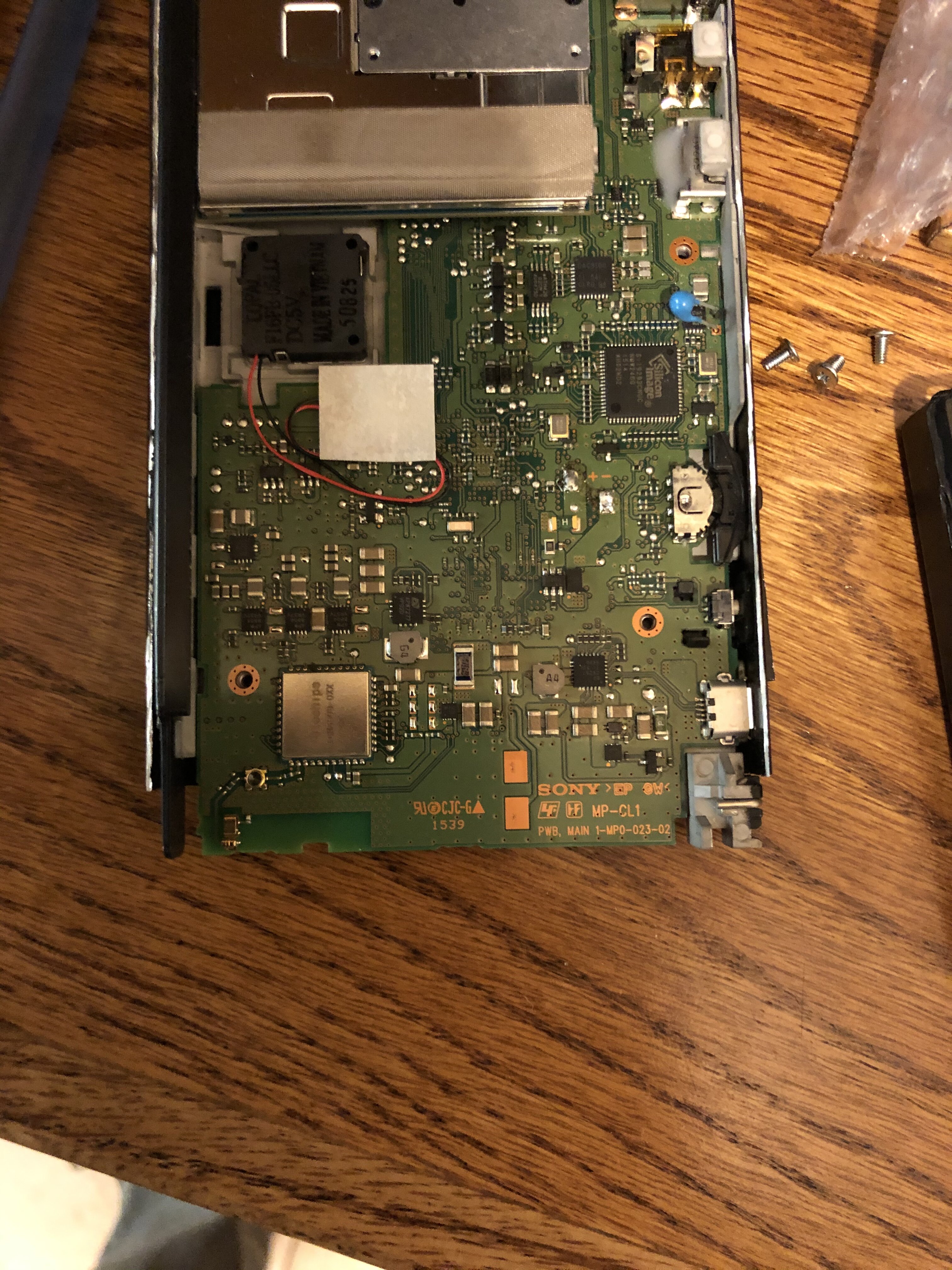

In the process of disassembling my pocket projector for modifications, I tore into an electrical component that I have no idea what it does, and the device is no longer functional. Not my finest moment. There is a number written on the component - “5425Q” - I will attach some pictures to this post of both the component and the board it connects to. Any help would be greatly appreciated.

Thank you


Attachments

  • 2689120D-ACE7-4E39-AE58-69EA6ADD9A7E.jpeg
    2.1 MB · Views: 328
  • CA88E2B5-6104-4DBB-9201-75824408EBB9.jpeg
    806.7 KB · Views: 318
  • 08F52E90-C861-4511-B9D7-7599344430E0.jpeg
    1.8 MB · Views: 336
  • 97CB602D-61C7-480E-9D51-F1D2F5337EE4.jpeg
    1.8 MB · Views: 295
  • 23BA4427-B7AD-4C0A-B660-F340A1F506FB.jpeg
    1,023 KB · Views: 324
The package looks like one style of quartz crystal - but it's rather too large and having one on sprung contacts makes no sense.

I think it could be a supercapacitor or lithium cell, possibly an anti-tamper setup to prevent unauthorised service - if that is disconnected it may need a programmer connected to reconfigure it.

I've seen a few pieces of equipment in the past that used systems such as that..

If you have a multimeter, do you get a DC voltage across the two pads on the PCB when power is on? If it's a supercap or rechargeable cell, there should be voltage (unless the thing has been put in to some kind of shutdown mode).


I cannot find that exact part; the numbers may be a date code or batch code - but there are some supercaps in similar-style casings, eg.


Edit - another thought..
It could be an unusually large crystal, separate from the board as it's used to set the working frequency to suit the video standard / region the device is to be sold in??

Last edited:
Thank you for your input!

I’ve disassembled it further and have come to the conclusion that it’s actually the system speaker. I had discounted it as a possibility before because I was assuming the slits cut for the cooling fan were for the speaker.

Having taken this thing apart from end to end I know there isn’t a speaker anywhere else in the device, so that has to be it. A quick magnetic test would have shown that much sooner. Haha

At this point I’m thinking the reason it won’t turn on is a faulty battery. According to the manual, the blinking lights at the top of the device indicate an “internal error.” I didn’t think to test whether or not it still turns on before I started tearing into it, and it had been sitting unused for several years.
