Help with pin config

MARINE1142

Member

• Jun 29, 2005

• #1

I have a L298N I cant seem to find out which side is pin 1 and which end is pin 15 can some one help?



Sebi

Active Member

• Jun 29, 2005

• #2

...

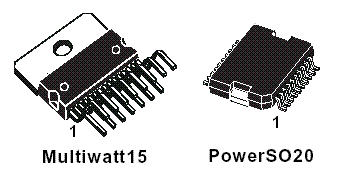

Attachments

• 298.gif

  5.1 KB · Views: 429

zevon8

New Member

• Jun 29, 2005

• #3

here is the data sheet:

https://www.st.com/stonline/books/pdf/docs/1773.pdf

if you have the version with a metal tab, pin one is the first on the left
if you have the 20 pin IC style, pin 1 is beside the corner with the bevel cut

Sebi, fastest typist in the forum, LOL



MARINE1142

Member

• Jun 29, 2005

• #4

Just to be clear then if you are looking at it from the front then the left pin is 1 right they are notched on both sides?



evandude

New Member

• Jun 29, 2005

• #5

sorry to sound rude, but... come on, there's a picture!! and open up the datasheet, and there's even more detailed diagrams!



MARINE1142

Member

• Jun 29, 2005

• #6

No problem that is not rude I had a serious brain failure I was putting it in and had it pin 1 from left to right but when I noticed the two notches and freaked out but I saw that I was right in the first place thanks for the quick help.
