How to use Vias in Altium Designer to design PCB?

F

For The Popcorn

Well-Known Member

Most Helpful Member

• Nov 28, 2022

• #2

You have to add the vias to the samevl net as the copper areas.



Upvote 0 Downvote

rjenkinsgb

Well-Known Member

Most Helpful Member

• Nov 28, 2022

• #3

It appears the VIAs are not in the same net as the copper area, so are having isolation rings added.

Check the net and try changing it to the same as the main area?

It's not a program I've ever used, but that is a typical different-net effect.



Upvote 0 Downvote

R

R_ZH

New Member

• Nov 28, 2022

• #4

Yes, you are right, that's one problem. But after changing it to the same net as the copper area. It became this crossover shape in the picture below. why did it happen like this?



Attachments

• 3.png

  50.6 KB · Views: 308

Upvote 0 Downvote

F

For The Popcorn

Well-Known Member

Most Helpful Member

• Nov 28, 2022

• #5

I haven't used Altium, but I suspect you've added a PAD, intended for soldering a component to –:the cross provides thermal isolation from the plane to make soldering easier – instead of a VIA, which won't have thermal isolation.



Upvote 0 Downvote

R

R_ZH

New Member

• Nov 28, 2022

• #6

I don't think so. When I double click the component, there will be a column in the properties box showing the Via type and feature. And if that's a Pad, it will show the Pad features. It's different text, I'm pretty sure about that.



Upvote 0 Downvote

ChrisP58

Well-Known Member

Most Helpful Member

• Nov 28, 2022

• #7

In the via properties box, there should be a check box for Thermal Relief under the Via Stack section.

Uncheck that box for a solid connection.

I don't have Altium Designer, but found this info here: https://www.altium.com/documentation/altium-designer/pads-vias



Upvote 0 Downvote

R

R_ZH

New Member

• Nov 29, 2022

• #8

Thanks for posting this link here. But all of the Thermal Relief boxes remain unchecked. I don't think anything wrong with it.



Upvote 0 Downvote

F

For The Popcorn

Well-Known Member

Most Helpful Member

• Nov 29, 2022

• #9

Take a look here for stitching.



Upvote 0 Downvote

R

R_ZH

New Member

• Nov 29, 2022

• #10

Yes, it works. I got the answer from 'add stitching to net'. Thank you very much!



Upvote 0 Downvote

R

R_ZH

New Member

• Nov 29, 2022

• #11

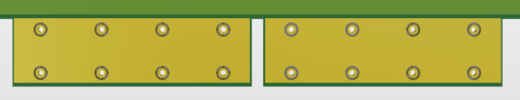

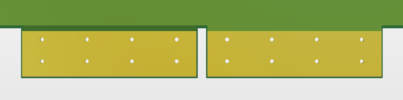

I'm sorry there seems to be another problem. It really reached the effect in picture 1 in 3D model, but in 2D model if double click the via, it still shows a crossover pattern like in picture 5 and it should actually be the pattern in picture 4. Besides there are no signs of using stitching in picture 4 and it really looks like a normal via. So that maybe not the best way to reach the desired effect. I'm still working on the solutions and any help would also be appreciated.



Attachments

• 4.png

  12.4 KB · Views: 287
• 5.png

  14.9 KB · Views: 295

Upvote 0 Downvote

ChrisP58

Well-Known Member

Most Helpful Member

• Nov 29, 2022

• #12

You might try asking in Altiums forum.

https://live.altium.com/signin?prmGotoUrl=https://forum.live.altium.com/#/



Upvote 0 Downvote

R

R_ZH

New Member

• Nov 29, 2022

• #13

OK, thanks! I'll try it.



Upvote 0 Downvote

R

R_ZH

New Member

• Nov 30, 2022

• #14

Hello, I found the answer at Design>Rules>Plane>Polygon Connect Style>PolygonConnect. I set the Connect Style to Direct Connect and I got the results I want. And there maybe some distortion to the via connection to Polygon in some layers after resetting, just redraw the polygon and the problem is gone. Yes, you got that idea. It is indeed something related to Thermal Relief box, but we can reset this box using this method. Hope this maybe useful for someone who has the same question.
