Inchworm ICD2 in 3D!

William At MyBlueRoom

New Member

• Aug 15, 2006

• #1

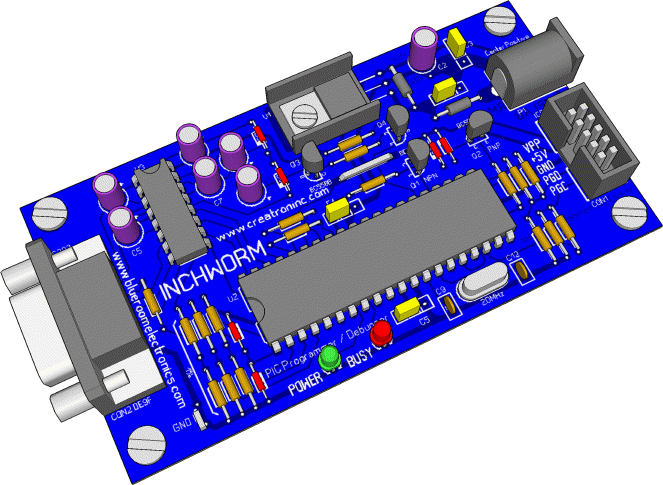

Just having some fun with Sketchup 3D.



Attachments

• inchworm 3d.png

  77.6 KB · Views: 412

audioguru

Well-Known Member

Most Helpful Member

• Aug 15, 2006

• #2

In 3D it looks very realistic, doesn't it? It looks great.



William At MyBlueRoom

New Member

• Aug 15, 2006

• #3

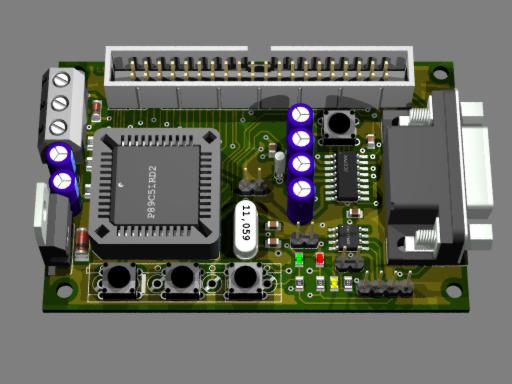

Thanks Uncle $crooge, I still wish I could use Eagle 3D with Sprint Layout. A Gerber to 3D would be something.



Attachments

• eagle 3d.jpg

  28.4 KB · Views: 295

B

BeeBop

Active Member

• Aug 15, 2006

• #4

Wow! Just bloody marvelous! Very good looking.



William At MyBlueRoom

New Member

• Aug 15, 2006

• #5

Well here you go then The Inchworm in 3D and you get to play with it!

You can download a free viewer from https://www.sketchup.com/

They even have a fully functional (8 hr limit) demo.



Attachments

• Inchworm 3D.zip

  138.1 KB · Views: 151

Dr.EM

New Member

• Aug 16, 2006

• #6

Very nice! How long does it take to model something like that?



mramos1

Active Member

• Aug 16, 2006

• #7

Bill,

Did you ever get blue boards?



William At MyBlueRoom

New Member

• Aug 16, 2006

• #8

mramos1 said:

Bill,

Did you ever get blue boards?

Click to expand...

My partner in this project finally greenlighted (he's the owner of Creatron Inc a store in Toronto)

As for blue the problem appears it's single sided and I'm getting mixed answers on if my soldermask layer is useable. The first batch (200pcs) may only have a green soldermask on the bottom layer and tan (no soldermask) with silkscreening (white or black?) on top.

Should be ready in the first week of September. And one is coming each to a pair of very helpful Mikes on these forums.



William At MyBlueRoom

New Member

• Aug 16, 2006

• #9

Dr.EM said:

Very nice! How long does it take to model something like that?

Click to expand...

I can model in Sketchup quite fast, about 4 hrs to make the parts and "populate" the board. With premade parts about 1.5hrs.

I've drawn tons of stuff in the four years I've been using sketchup.

Attached is a 3D house on top of a Linux (Clarkconnect) based HA / AV server (yes I use one) my site runs on it, and I'm learning PERL to allow all these chatting thermostats to use it as a gateway. Drawing that took about a day.

PS Google Earth uses sketchup for the 3D buildings.



Attachments

• 3dhouse.png

  172.6 KB · Views: 256
