LTspice simulation distortion function

ericgibbs · Nov 26, 2010

RITESH KAKKAR said:
i have joined but not getting, what i want.

Hi Ritesh,
I am not getting what I want....

You have to tell me the problem so that I can help, I don't have a crystal ball or a Ouija Board

koolguy · Nov 27, 2010

OK, i want all ic's and the link you have given of 4017 IC(example), is showing error + the name of pin of ic is not given.

ericgibbs · Nov 27, 2010

RITESH KAKKAR said:
OK, i want all ic's and the link you have given of 4017 IC(example), is showing error + the name of pin of ic is not given.

hi,
From that link I posted download to your desktop

CD4000.lib
CD4000.zip
CD4000_Example.asc

Unzip the CD4000.zip, inside the CD4000 folder are all the CD4000 series *.asy symbols.

The CD4000.lib are the sub circuits for the CD4000 series, you can use a text editor to view the contents of the lib if you wish.

So on you desktop you should have the CD4000 folder [asy]
the CD4000.lib and
the CD4000_example.asc

If you now run the CD4000_example you should see the example circuit layout, RUN it.

When you are satisfied that all is well, move the files from you desktop to the correct folder in LTS on your hard drive.

koolguy · Dec 13, 2010

Sir, pls post 4017 complete tutorial circuit for Lt spice, as earlier sent is showing component not found.

koolguy · Dec 13, 2010

Reply....!!

ericgibbs · Dec 14, 2010

RITESH KAKKAR said:
Reply....!!

I do not think there is a tutorial for the 4017.?

Post a screen image of what you see when you try to run the 4017.asc file, that may give a clue to the problem.

koolguy · Dec 14, 2010

These are the problem occurs when i run 4017 file i LT..!!

ericgibbs · Dec 14, 2010

hi,

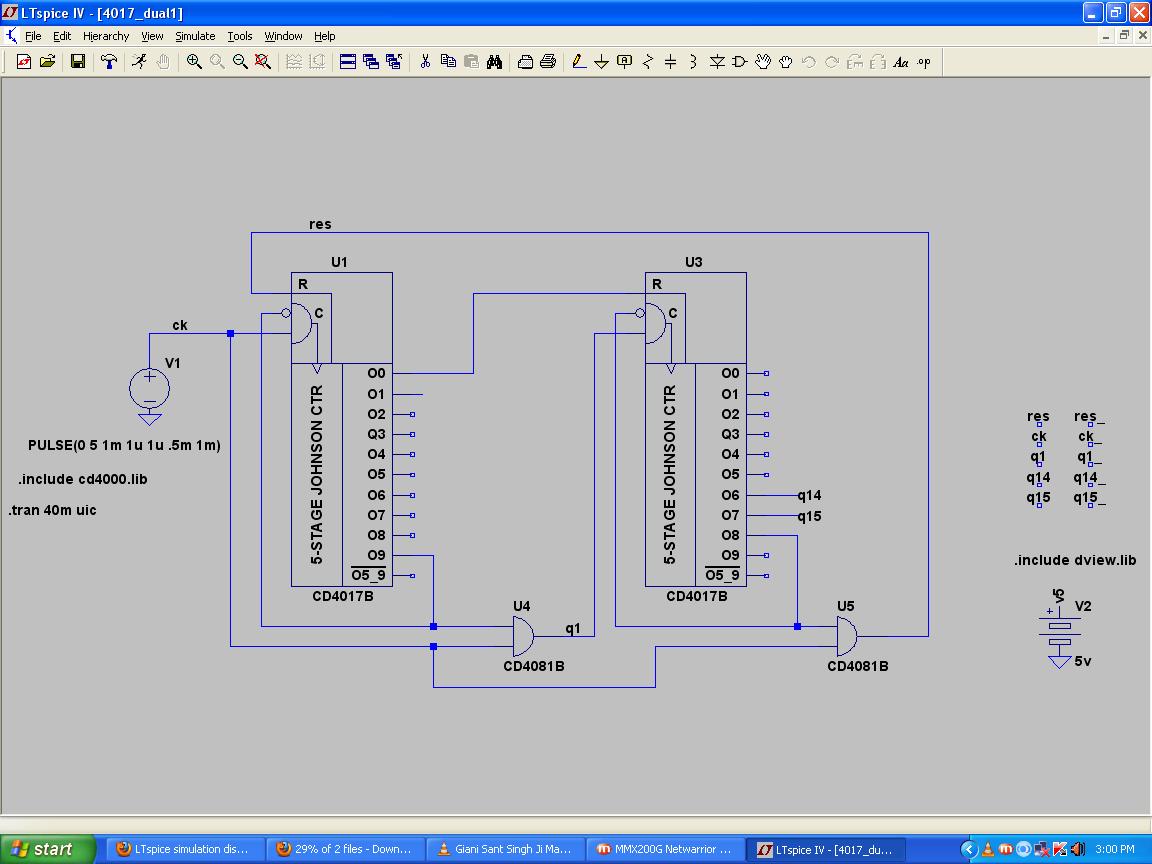

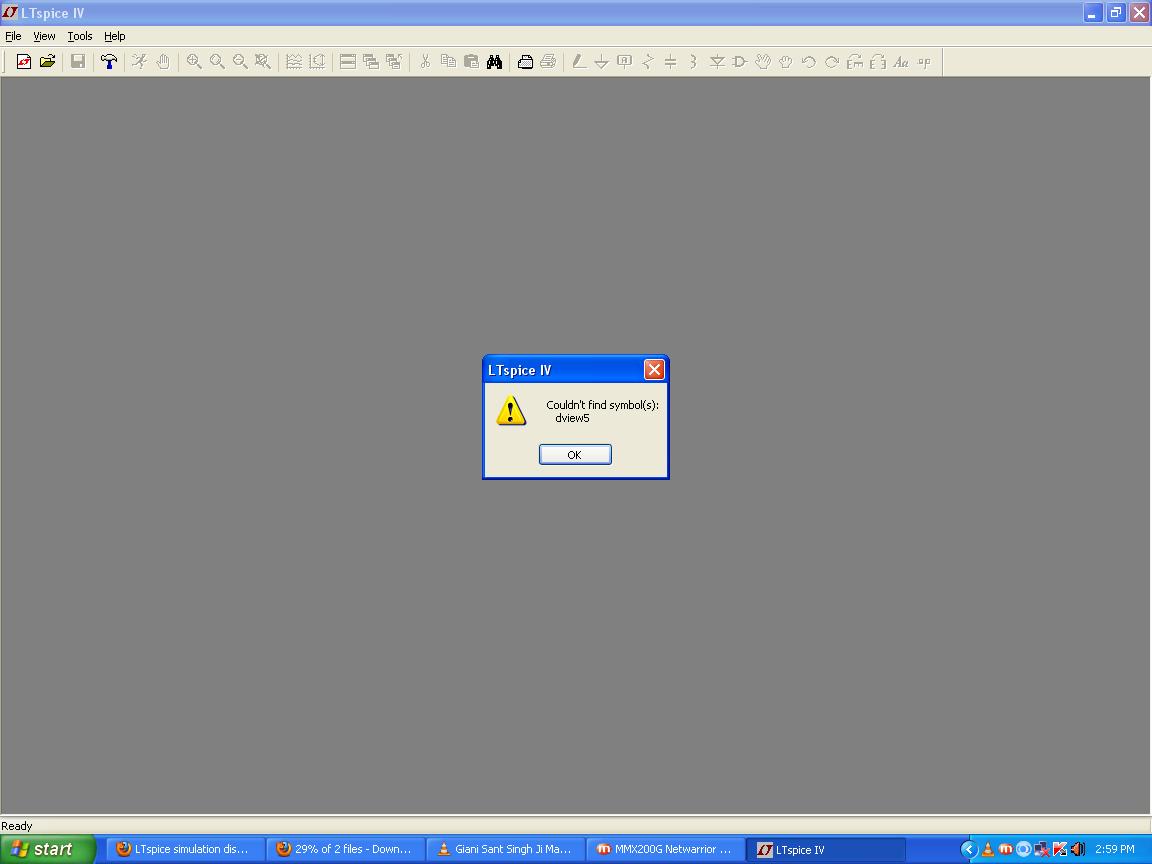

This is your problem, you dont have dview,,, just delete the figures shown in this image,

koolguy · Dec 14, 2010

Why.....??

ericgibbs · Dec 14, 2010

RITESH KAKKAR said:
Why.....??

Because you asked me to tell you how to get it working for a 4017 .!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Did you follow my advice and did work or not.????

koolguy · Dec 14, 2010

Ok, now it's working thank's for help..!!

koolguy · Dec 14, 2010

What the use of Bode plot in Electronics??,
pls. tell..!!

ericgibbs · Dec 15, 2010

RITESH KAKKAR said:
What the use of Bode plot in Electronics??,
pls. tell..!!

Look here:
bode plot tutorial - Google Search

koolguy · Dec 16, 2010

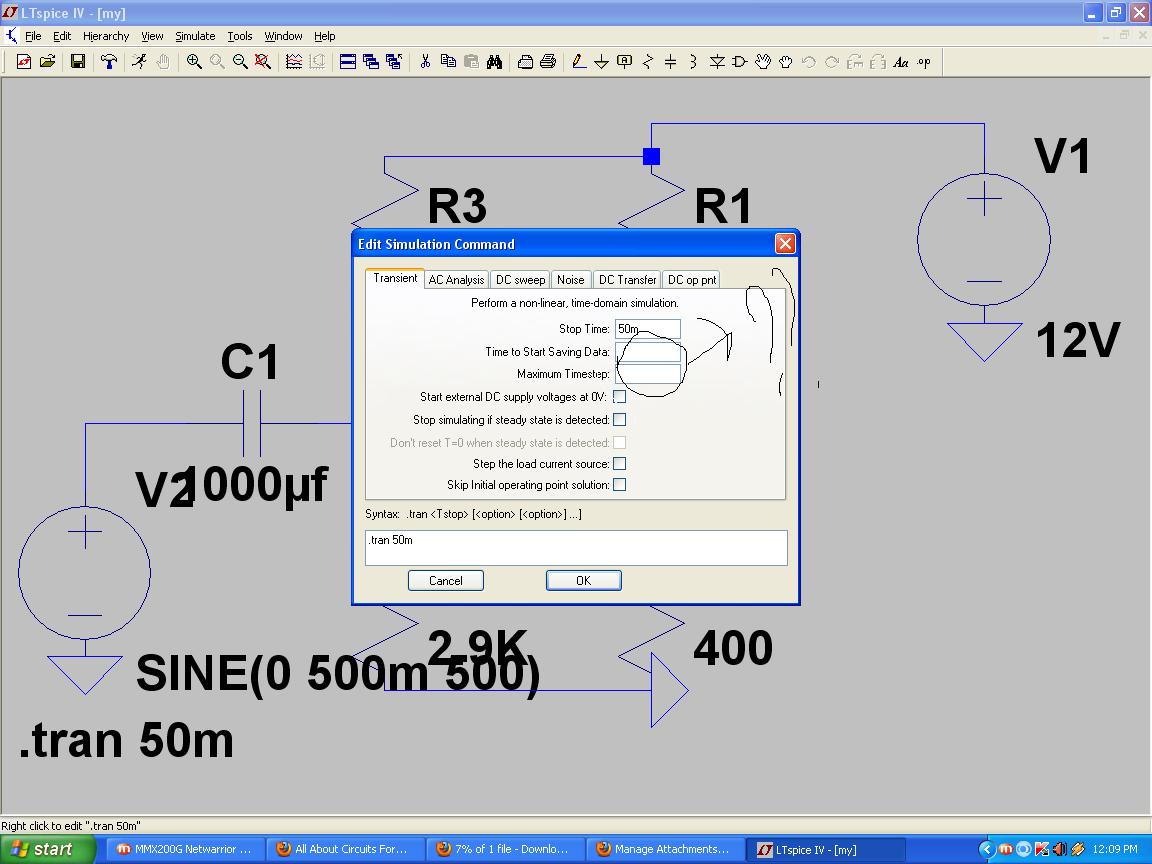

Hi, pls. tell the use of this option in LT spice as shown in image and how to make it JPEG as it don't show save in JPEG format..!!

Thank's.

ericgibbs · Dec 17, 2010

RITESH KAKKAR said:
Hi, pls. tell the use of this option in LT spice as shown in image and how to make it JPEG as it don't show save in JPEG format..!!

Thank's.

Look at this image.

Use TOOLS/copy to clip board OR write to wmf file.

If you have Microsoft PAINT, paste the Copied clip into it.

EDIT:
Download this free screen grabber,
https://download.cnet.com/ScreenHunter-Free/3000-2192_4-10063246.html

koolguy · Dec 17, 2010

Still having some doubt in this image, as what is the need of this option??

koolguy · Dec 17, 2010

The screen saver software is very good, as i was using print scree option before but i don't understand why it does not capture video with background images??

ericgibbs · Dec 17, 2010

RITESH KAKKAR said:
The screen saver software is very good, as i was using print scree option before but i don't understand why it does not capture video with background images??

Look here for free download.
CamStudio - Free Screen Recording Software
You should really try to get some of the answers to your questions from the web, by using the Google Search

koolguy · Dec 17, 2010

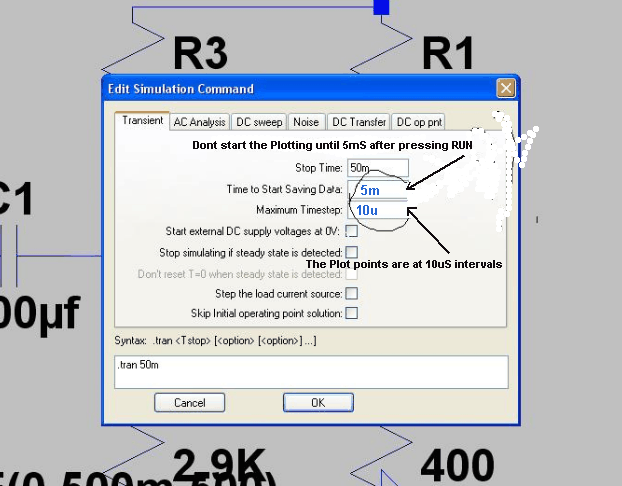

Thank's sir, for helping but tell the use of time to save data & maximum time spend what the need of it in lt spice??

koolguy · Dec 17, 2010

Reply, pls.!!
