Measuring Vs of jfet

Status
Not open for further replies.
confounded

confounded

New Member
I am trying to calculate 'gm' the transconductance of a particular n channel jfet (2n5485).
My workbook says observe quiescent Vs (voltage at transistor source)

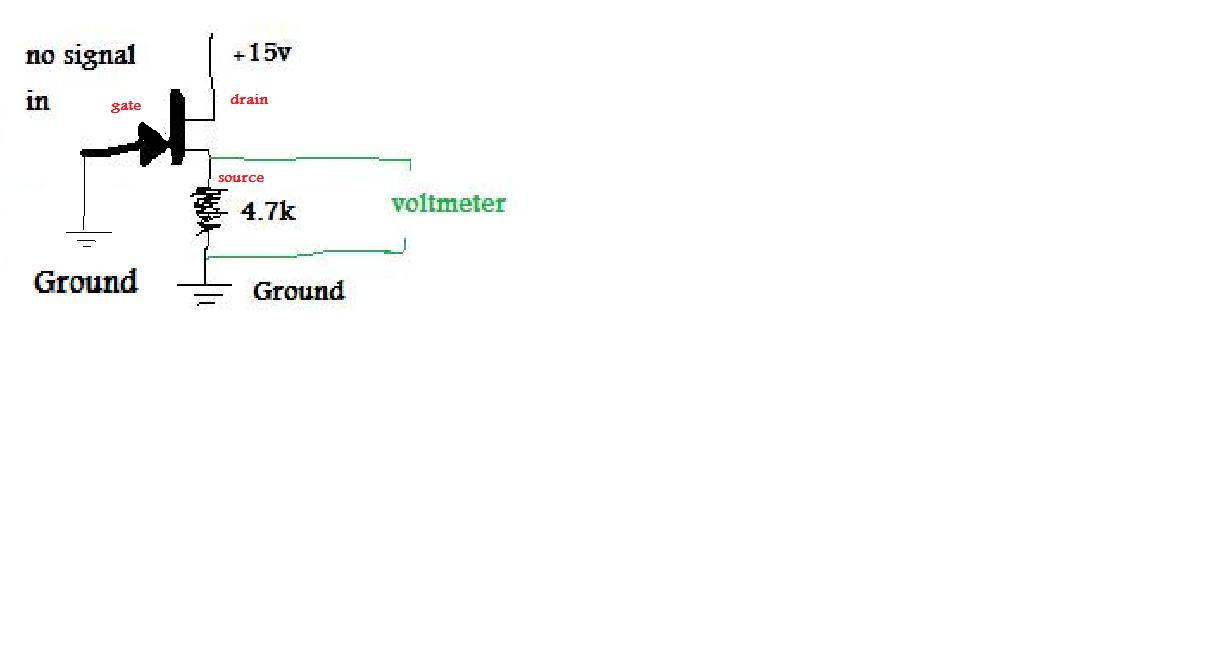

I have attached a crude drawing of my method of measuring Vs. Is this correct to find Vs quiescent?
because i measure 2v and this doesnt seem right to me?


Attachments

  • measuring Vs.jpg
    measuring Vs.jpg
    26.2 KB · Views: 502
