My L.E.D. light, complete at last

zachtheterrible

Active Member

• Sep 15, 2005

• #1

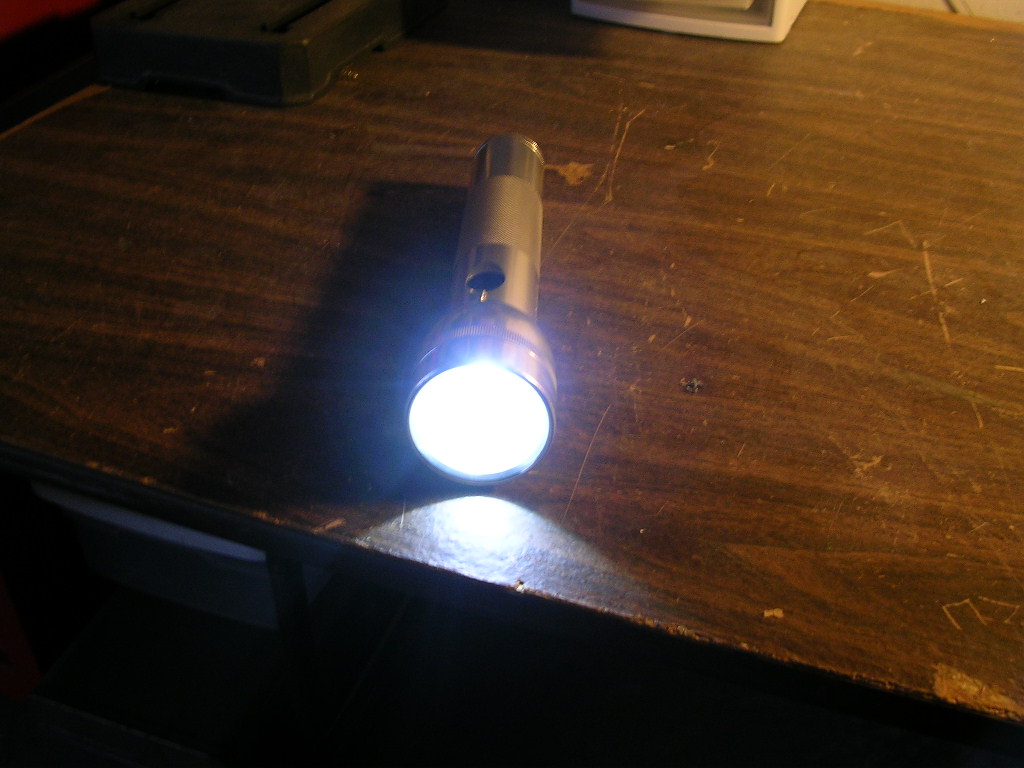

At long last my LED Light is finally complete . . . well, sort of, I guess you might call this one a prototype. I want to make a better layout for it because the one from silicon-chip is just plain sloppy and unreliable. I also want to get a new flashlight for two reasons: 1. I think it would look better in a black maglite. 2. I accidentally busted the button in my maglite when I was working on it, so the only way to turn it on and off is to remove the batteries.

Take a look at the pictures. It's almost full on night-time here, so I'll take some more shots of my neighborhood when it is totally dark. I'm also leaving it on to see just how long it will last, ill tell you how many hours (hopefully days :lol: )



Attachments

• beam.jpg

  234.7 KB · Views: 1,162
• across_garage.jpg

  200.8 KB · Views: 1,158
• flashlight.jpg

  165.7 KB · Views: 1,164

audioguru

Well-Known Member

Most Helpful Member

• Sep 15, 2005

• #2

Horray Zach, you fixed it and it works very well! :lol: :lol:



Attachments

• icon_party3_111.gif

  6.3 KB · Views: 1,132

zachtheterrible

Active Member

• Sep 15, 2005

• #3

hee hee, you and your icon party :lol:

I think when it is finished I will make a detailed how-to and post it in the projects section.



bryan1

Well-Known Member

• Sep 15, 2005

• #4

well done Zac I can't wait till I get my 3 watt led to play with. What I intend to do is use it to light a path from the shed to the house, I'm getting a 25 degree diffuser with it so it should shine for the 40 metres I need. It should save using a heap of led nite lights and I intend to set it up with a timer so I won't need a switch down at the house. As soon as it's up and running I'll do a pic of it and put it up here.

Cheers Bryan



zachtheterrible

Active Member

• Sep 16, 2005

• #5

Sweeeet, can't wait to see it :wink:

Hmm, I just measured the mA that this is consuming and its consuming 700mA. The LED is consuming about 500mA, but where is the other 200 going I wonder? I won't worry 'bout it 'till I make a new circuit for it.



jrz126

Active Member

• Sep 16, 2005

• #6

:shock: Thats pretty sweet.
Was it hard to get the circuit and everything to fit into that maglight?

Where do you buy these high wattage LED's from?

I think Im gonna have to start playing with them



audioguru

Well-Known Member

Most Helpful Member

• Sep 16, 2005

• #7

I'm going around blinding people with my white and blue blinkers that pulse their ultra-bright fairly ordinary 5mm LED at 95mA. I've sold a lot of them. They light-up the houses far across my street and I use them to see when I am walking my dog at night and what I am doing when late barbecuing. They use a 9V alkaline battery with a 5V low-dropout regulator. I should be using an SMPS step-up circuit like Zach so I can use cheaper, higher capacity couple of AA cells.

If I get my hands on one of those heatsinked very bright LEDs then I will design a circuit for it to burn holes in things!

Zach, can you feel heat if you shine your powerful flashlight on your hand?
To properly measure currents in pulsed circuits like yours, maybe you need to use a capacitor across your current meter's leads as an averaging filter.
