Am completing the pcb for a micro project with 4 buttons used for lcd menu selection.

Rather than a typical straight line of switches though that a navigation ok arrow tv remote type of buttons would look neat.

Though the actual switch is easily bought the button faces seem scarce, a few complete ones on ebay UK but at £20 ish !

Anyone know of a good source of a complete assembly at a sensible price or is it more a case of buy a cheap tv remote and extract the parts ?



JonSea

Well-Known Member

Most Helpful Member

• Mar 6, 2016

• #2

TV remotes won't contain mechanical switches - they use conductive pads mounted on a flexible sheet to press against PCB traces. Search for "push button switch" on eBay for some options.



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Mar 7, 2016

• #3

I bought some (I say some ) micro switches from china.... One here was £2.50 I got 100 for £2.50 with free delivery... I have 99 left!! The only issue is they are side operated...( it was for a tablet repair!! ) If they are any use???

Just search for SMD micro tactile switch...



W

Wp100

Well-Known Member

• Mar 7, 2016

• #4

Josea, thanks, did not realise the remotes were all the flexi types.

Ian, thanks , but was looking for the 5 way switches and button covers.

Nothing on ebay but after another search have just found one such complete beastie at Farnells for £10.50, thought they would be more popular ..
https://www.farnell.com/datasheets/1679699.pdf



JonSea

Well-Known Member

Most Helpful Member

• Mar 7, 2016

• #5

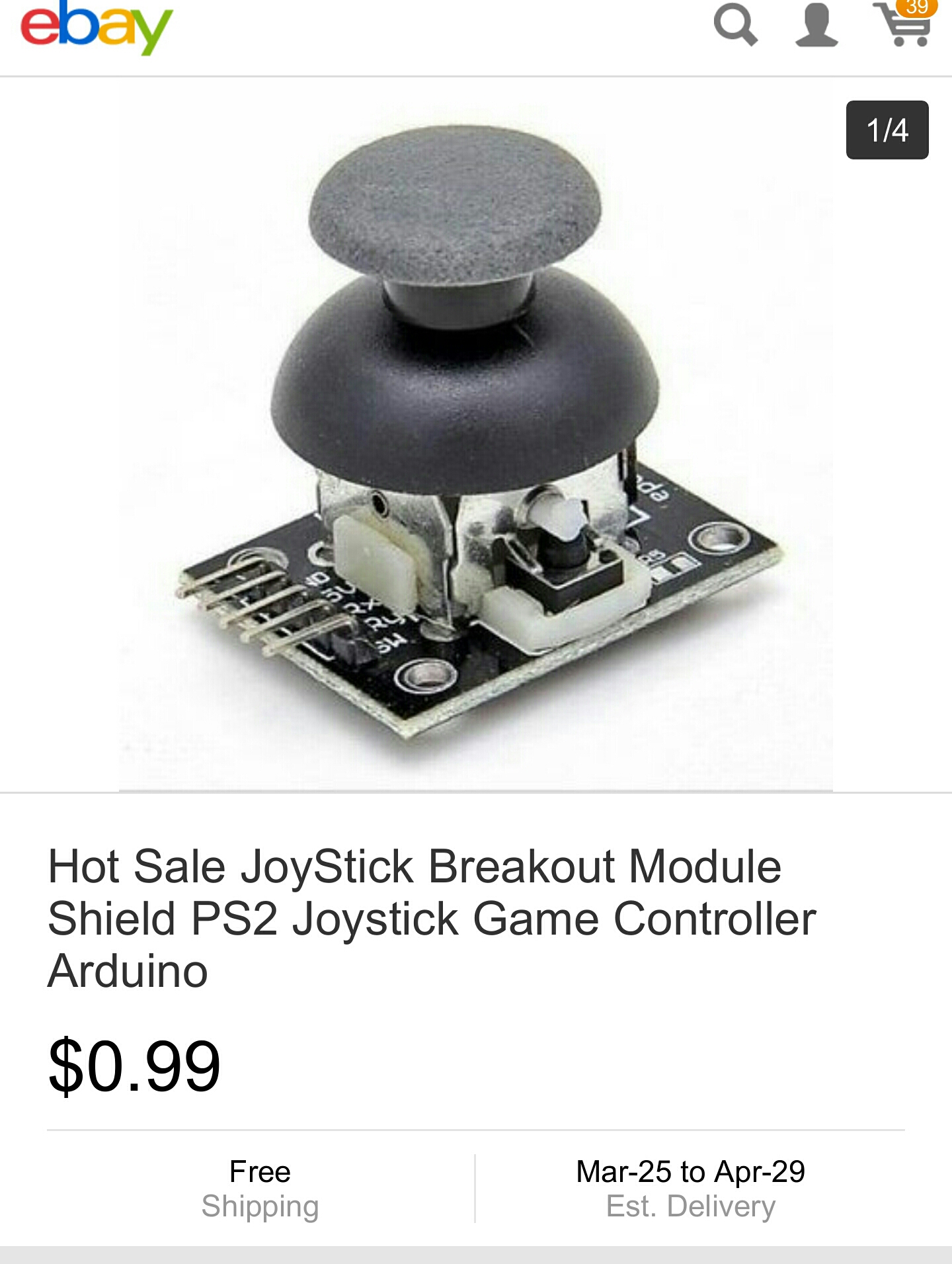

Would a joystick work for you? They are as cheap as a buck on eBay.



W

Wp100

Well-Known Member

• Mar 7, 2016

• #6

Thanks, but with just 2 pots and one switch it would need a lot of code rework, perhaps more suited to a larger tft screen than a 16x2 lcd I currently use.
Also do not think it would sit too well on a cabinet bezel having to go over at such a steep angle.



Attachments

• 000288.jpg

  5.9 KB · Views: 255

JonSea

Well-Known Member

Most Helpful Member

• Mar 7, 2016

• #7

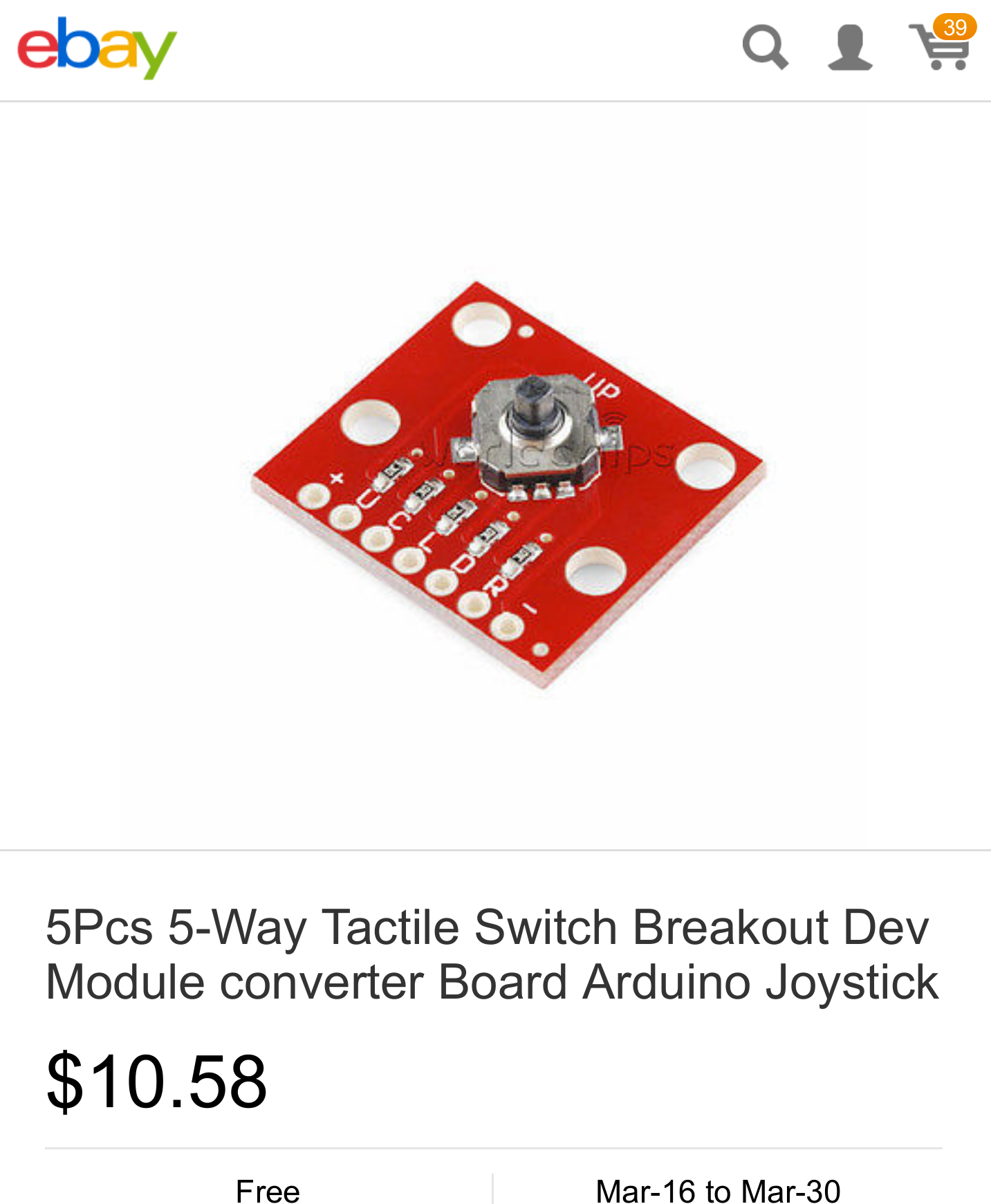

Oops...that does appear to have pots. Some similarly sized units have 4 sets of switch contacts. The picture shows an example.
