Need help identifying DPDT relay pins

C

calemyoung

New Member

• Sep 29, 2010

• #1

Hi, I'am making a robot with light seeking ability and that turns around when it bangs into an object and need to identify what pins are what on my 12v DPDT Relay.

They need to be identified into NC (normal closed), NO (normal open) and the relay electromagnet coil pins

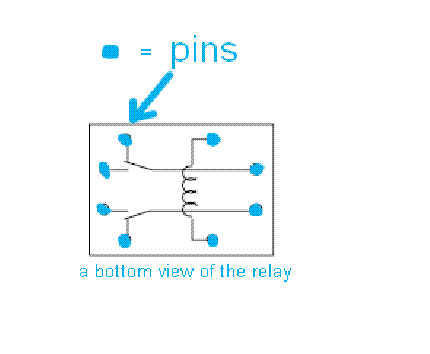

Picture of the DPDT is attached thanks



Attachments

• DPDT RELAY.GIF

  4.9 KB · Views: 456

ericgibbs

Well-Known Member

Most Helpful Member

• Sep 29, 2010

• #2

hi,

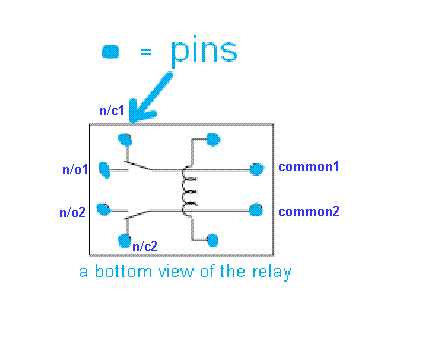

Do you mean this.??



Attachments

• Dpdt relay.gif

  5.3 KB · Views: 1,398

C

calemyoung

New Member

• Sep 29, 2010

• #3

Yes, thanks!!
I've been looking for this for ages! =)



cr0sh

Member

• Sep 29, 2010

• #4

I really wonder how, if you are having this much trouble figuring out a relay (really - the picture you posted was more than clear enough), you expect to successfully build a robot...?



C

calemyoung

New Member

• Sep 29, 2010

• #5

I wasn't having too much worry figuring this out. In fact before I posted this I had guessed by the diagram what pins were what, I just wanted to make sure I was right by asking someone with more experience then me and generally I find robot making not to hard.
