Need Ideas and schematics for digital Dice

[madsnoridr812]

SOme great schematic ideas for digital dice would be highly appreciated

Thanx :lol:



[mozikluv]

digital dice

hi,

i have a simple circuit for that, just PM me with you email ad.



[Sebi]

https://www.electro-tech-online.com/threads/interfacing-atmel-with-24cxx-eeprom.3180/



[madsnoridr812]

others

i need it using 7 led's and not the 4017b chip



[mozikluv]

led dice

hi,

as i have said what i have is using 7 leds.



[Electric Rain]

https://www.electro-tech-online.com/threads/interfacing-atmel-with-24cxx-eeprom.3180/

Yeah, what he said. :lol: This was my thread and has become quite popular, so you should be able to learn quite a bit from it. Just about every type of digital dice are there. Single, dual, matrix, (LEDs in the shape of a die) Digital LED display, it's all there. Hope this helps,

Rain



[stuck on electronics]

any1 know electronics to help a girl out with

i am really stuck on my electronics project which is 2 make a matrix dice with 6 or 7 led's cud u help me pleez

lol stuck on electronics



[Roff]

Two guys with the same requirements. Is this a school assignment?



[ljcox]

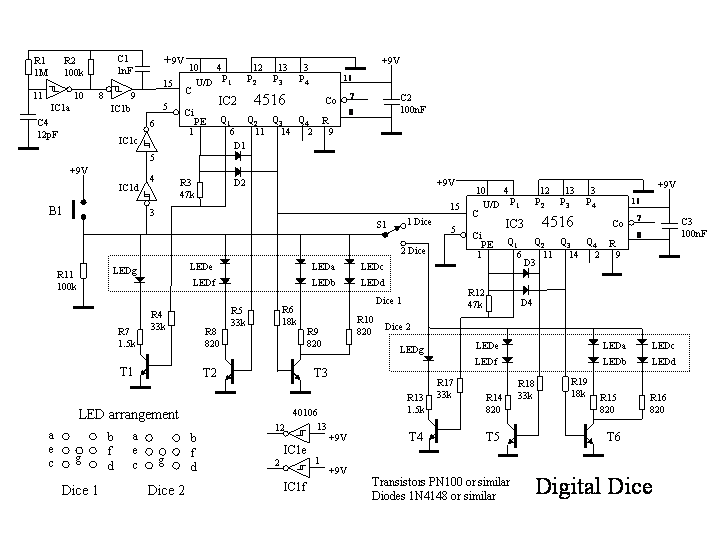

Here is one that I did some time ago.

Len



[Pommie]

Two guys with the same requirements. Is this a school assignment?

Probably, but there is 14 months between the posts.

Mike.



[Electric Rain]

Two guys with the same requirements. Is this a school assignment?

Probably, but there is 14 months between the posts.

Mike.

Yeah, that's what I was gonna say. Besides, the second person is a girl. (Look in the subject of her post.)



[Roff]

Two guys with the same requirements. Is this a school assignment?

Probably, but there is 14 months between the posts.

Mike.

Yeah, that's what I was gonna say. Besides, the second person is a girl. (Look in the subject of her post.)

Shows you how observant I am (NOT).



[Nigel Goodwin]

If anyone cares to check the current issue of EPE (July 2005)?, it has a simple design for a digital dice - using two cheap CMOS IC's and a few diodes - you can download issues from their website at very reasonable cost!.



[ante]

Hi Nigel,

I have just got the EPE, which page please? Couldn’t find it in index and not by browsing!



[Nigel Goodwin]

Hi Nigel,

I have just got the EPE, which page please? Couldn’t find it in index and not by browsing!

It's page 506, it uses a 4017 and a 4093. It's part of 'Back to Basics - CMOS Logic Devices'.



[ante]

Hi Nigel,

Sorry, mine was from this month (JUNE) not the next month like yours. I wasn’t reading your post correctly. I got suspicious when my magazine ended at page 448!
I will probably get it soon, tanks Nigel!

Ante :roll:



[Nigel Goodwin]

Hi Nigel,

Sorry, mine was from this month (JUNE) not the next month like yours. I wasn’t reading your post correctly. I got suspicious when my magazine ended at page 448!
I will probably get it soon, tanks Nigel!

Ante :roll:

For some bizarre reason magazines always come out the month before their cover date?.
