Hi, please help me with schematic about power supply output tester.

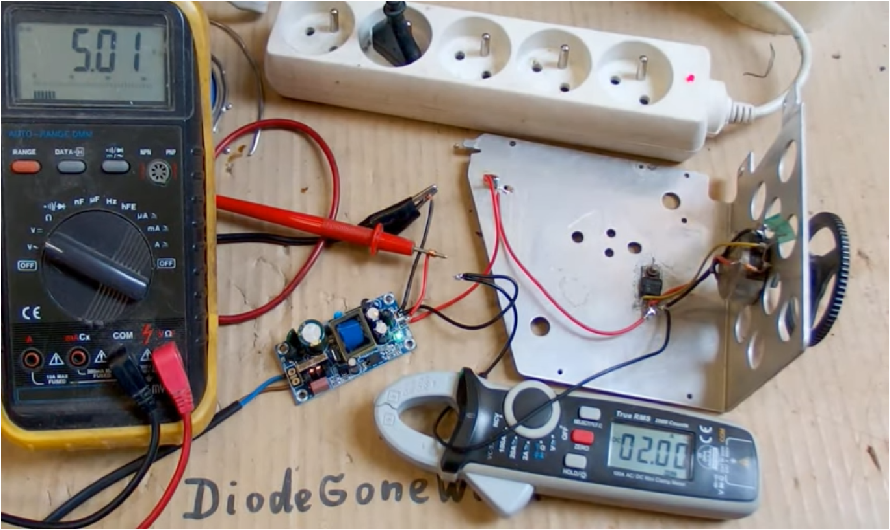

I figure out an potentiometer and transistor in the picture.
I just need the basic schematic of it. Thanks a lot for answering.



dr pepper

Well-Known Member

Most Helpful Member

• Mar 11, 2020

• #2

I beleive this is the exact same one, Danyk uses a mosfet.

Electronic resistor - Dummy load for power supplies

danyk.cz



S

Surculose

New Member

• Mar 11, 2020

• #3

You should check this out! The most updated top-rated list of multimeters is on your page now. Explained briefly its features and what you should get in each brand. You will never go wrong with these multimeters and will solve your vehicle problems.



Last edited: Apr 8, 2020

alec_t

Well-Known Member

Most Helpful Member

• Mar 11, 2020

• #4

Exactly what output test are you trying to carry out?



Reloadron

Well-Known Member

Most Helpful Member

• Mar 11, 2020

• #5

Given a choice rather than use a MOSFET as a load I prefer a resistive load or actually loads being switched in and out of a circuit using a MOSFET. You constantly measure Voltage and Current to the load. While using a MOSFET works it is not my choice as a load.

Ron
