Seiko M1641

Status
Not open for further replies.
theinfamousbob

theinfamousbob

Member
Hi all, wondering if anyone has this datasheet...the only one I've found is a summary of all of Seiko's LCDs and doesn't have any pin listings...

It's a 1x16 Char. LCD with a Hitachi HD44780 controller and backlight.

Any help would be appreciated.

Thanks,
Infamous

Seiko M1641 Datasheet
**broken link removed**


Attachments

  • m1641.pdf
    928.8 KB · Views: 569
  • m1641_datasheet.pdf
    0 bytes · Views: 538

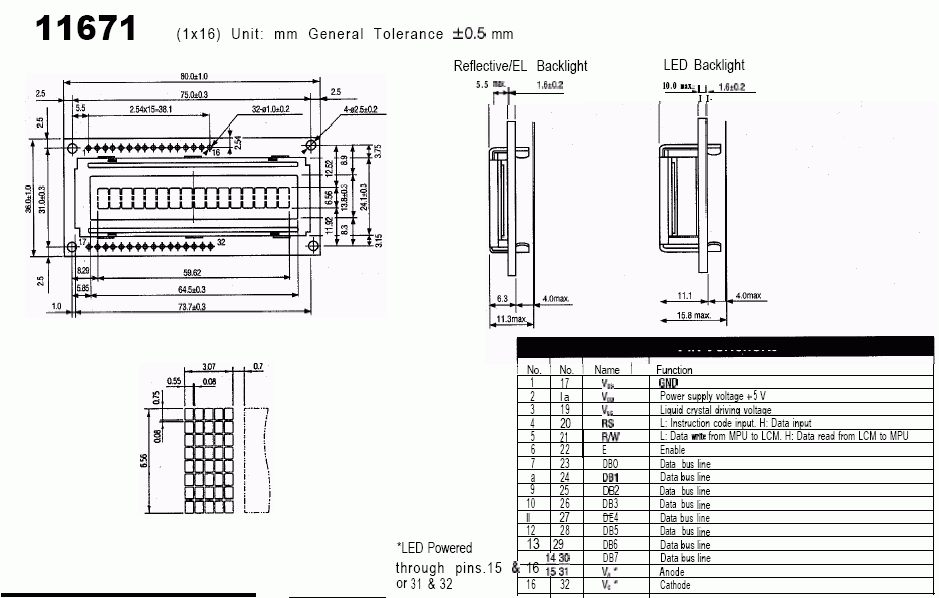

Here is the Pinout


Attachments

  • m1641_pinout.gif
    46.6 KB · Views: 699
thanks!

I actually spent a few minutes yesterday reverse engineering the board based on the Hitchi HD44780 driver....


thanks again.

-Infamous
