Spice help, n function

kinarfi · Jun 10, 2011

I was browsing through chips on the web and one of them included an .asc file that had a device (LED) and a notation that indicated that it was 5 LEDs, even though there was only one symbol. I have been trying to find the format for multiple devices, but have been unsuccessful. Can any one help me.
Thanks,
Kinarfi

Roff · Jun 11, 2011

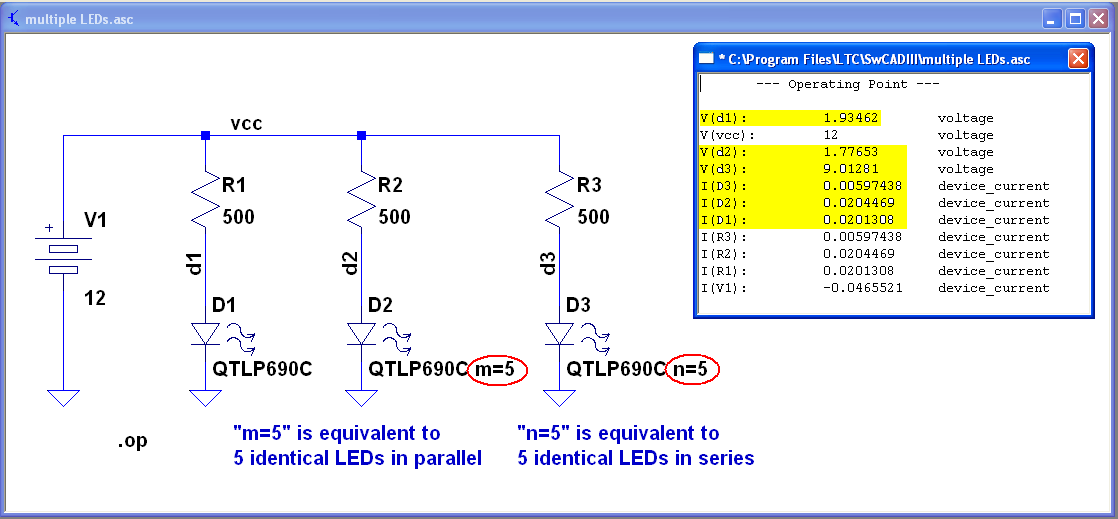

Here is an example of what I think you are referring to. To add the "m" or "n" (multiplier), right-click on the value of the part and type in "m=5" (or whatever number you want). Don't enclose it in quotation marks. A test shows that m works for resistors, but n doesn't. Go figure.

kinarfi · Jun 11, 2011

Thank you, exactly the information I was looking for.
Kinarfi

ericgibbs · Jun 12, 2011

A double thanks Ron, didn't know that.

Roff · Jun 12, 2011

ericgibbs said:
A double thanks Ron, didn't know that.

In the past, I had used fractional values of "m" to cause a Vbe mismatch between transistors. I learned about "n" by experimenting with the LED sim that I posted, and then discovered that it is documented in the diode section of LTspice help.

kinarfi · Jun 13, 2011

When you get something good, like the answer here, you tend to ask for more, so, is the also a function for averaging an out put trace on spice?

crutschow · Jun 13, 2011

kinarfi said:
When you get something good, like the answer here, you tend to ask for more, so, is the also a function for averaging an out put trace on spice?

Go to "Waveform Arithmetic", paragraph 2 in the Help File of LT spice. Just move the mouse to the trace label, and do Ctrl / left click.

kinarfi · Jun 15, 2011

Sorry to keep asking, but I did look, is there an easier way to get "frequency" than zooming in on one cycle of the wave form?
Thanks for the help.
Kinarfi

Roff · Jun 15, 2011

kinarfi said:
Sorry to keep asking, but I did look, is there an easier way to get "frequency" than zooming in on one cycle of the wave form?
Thanks for the help.
Kinarfi

See this thread.
