the increment start from 00 to 99 continuously

nikzhafran · Feb 19, 2015

By following the schematic diagram,make a circuit for increment the number when each time the pattern button is pressed.
An evaluation are including the :

1)Tidiness
2)Capabilities functioning according the increment start from 00 to 99 continuously.
3)The gape of counting number should be 1 second

can anyone help me how to make program in Code (asm) using keil AT89c51 ?

Link deleted.......

Ian Rogers · Feb 20, 2015

https://www.electro-tech-online.com/articles/basic-8051-tutorial-2.668/

Have a look at the code I have done here! It should give you a start!!

nikzhafran · Feb 20, 2015

This code i do ..It is ok ?
sorry because i new study about this

Code:

        Org    00H

        data_one        equ    P3
        data_ten    equ    P2

        Mynumber        equ    30H

main_prog:    MOV    P2,#0C0H
        MOV    P2,#0c0H
        mov    Mynumber,#0
        JNB    P1.0,up_A
        JNB    P1.1,stop_A
        sjmp    main_prog

up_A:        mov    a, Mynumber
        Cjne    A,#99, up
        mov    Mynumber,#0FFH
        sjmp    up

stop_A:        mov    a, Mynumber
        Cjne    A,#0, stop
        mov    Mynumber,#99H
        sjmp    stop

up:        inc     Mynumber
        JNB    P1.1,stop
        Call    BCD
        call    delay
        mov    a, Mynumber
        Cjne    A,#99, up
        mov    Mynumber,#0FFH
        SJMP    up

stop:     dec     Mynumber
        JNB    P1.0,up
        Call    BCD
        call    delay
        mov    a, Mynumber
        Cjne    A,#00, stop
        mov    Mynumber,#100
        SJMP    stop

BCD:        Mov     A,Mynumber
        Mov     B,#10
        Div    AB
        call    Seg_conv
        mov    data_ten, A
        mov    A,B
        call    Seg_conv
        mov    data_one, A
        Ret

Seg_conv:    inc     A
        Movc    A, @A+PC
        RET

        DB    0C0H    ; 0
        DB    0F9H    ; 1
        DB    0A4H    ; 2
        DB    0B0H    ; 3
        DB    099H    ; 4
        DB    092H    ; 5
        DB    082H    ; 6
        DB    0F8H    ; 7
        DB    080H    ; 8
        DB    090H    ; 9

delay:        MOV    R5,#0ffh
        MOV    R6,#0ffH
        MOV    R7,#2
delay_loop:    DJNZ    R5,delay_loop
        DJNZ    R6,delay_loop
        DJNZ    R7,delay_loop
        RET

        END

Ian Rogers · Feb 20, 2015

Excellent first try...

I have run the program and it works as expected.... When stop is released the counter counts up and when pattern is released it counts backwards..

What next!!

nikzhafran · Feb 20, 2015

hi3 thank Ian Rogers .....
i very happy ....hu3
but i don't know how to stop it at that number if we push stop button it stop ...

are we use

stop:
JNB P1.0,up ;jump p1.0 = 0
SJMP stop

It is ok for me to use this pushbutton or what of kind pushbutton i have to use

nikzhafran · Feb 20, 2015

when i test it doesn't work ? it 0 from the start and when push pattern and stop it not work...

Ian Rogers · Feb 21, 2015

First off... The micro hasn't got very good current driving or current sourcing capability... I would buffer them... I would also feed the LED's with 5v directly and put 1.2k resistors between every LED pin and micro pin... That would give you 2.5mA per pin...

I will have to redo my circuit as I did it at work yesturday.. I'll post later.. Now Shopping ( Yuch!!)

absf · Feb 21, 2015

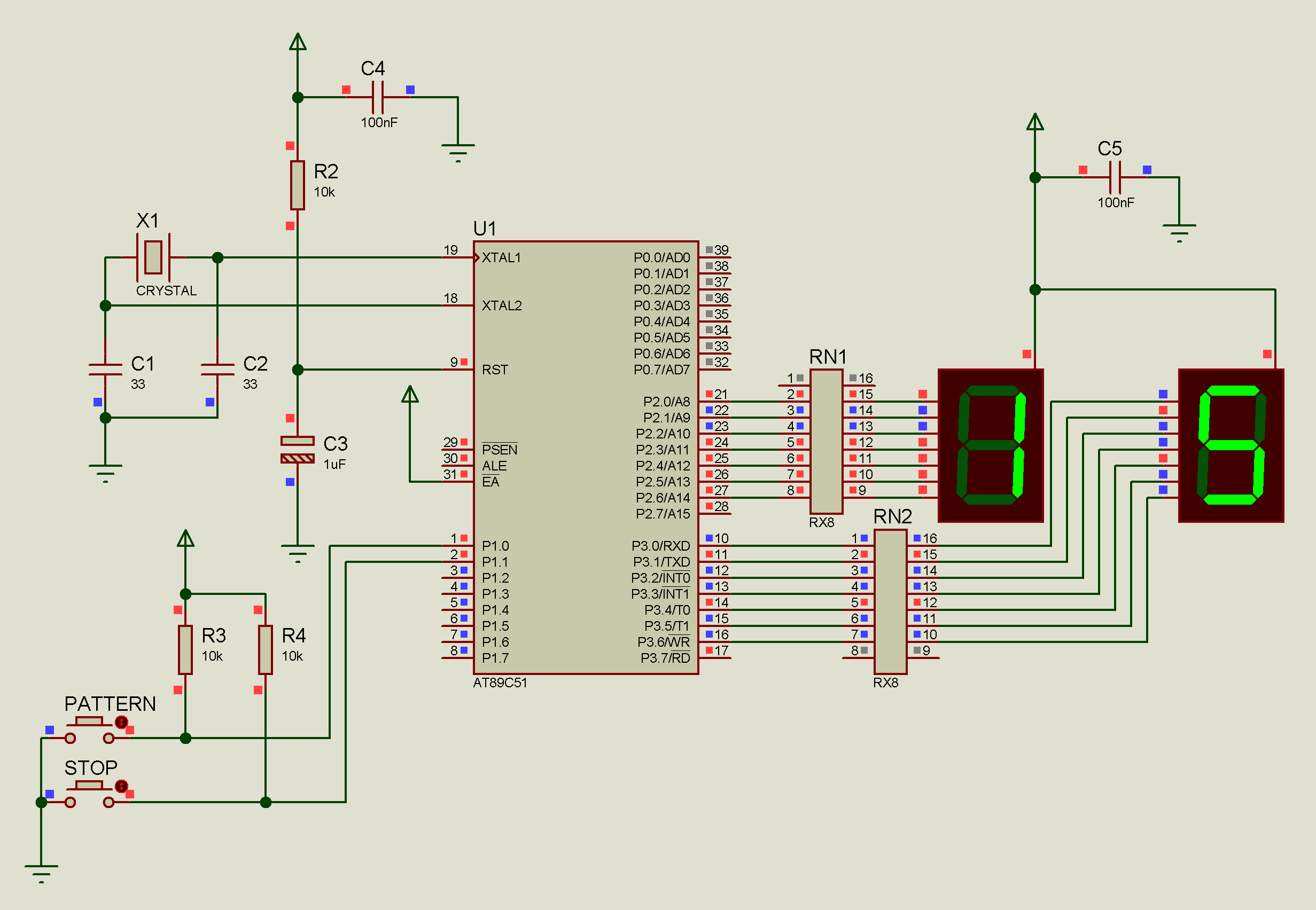

It seems your port 1 is not detecting your buttons. When no button is pushed, they should be logic low as you have R5 and R6 pulling it low. I changed you schematic a little bit, but there are some more problems that you have to take care of later.

There are also problems in your software.

Code:

main_prog:    MOV    P2,#0C0H
        MOV    P2,#0c0H
        mov    Mynumber,#0
        JNB    P1.0,up_A
        JNB    P1.1,stop_A
        sjmp    main_prog

Your main_prog is a permanent loop. The 2 JNB after completed their tasks never return to the main_prog and just wandering in their subroutines. This is one of the causes why your program is not working.

I did a little tuning on your code and it looks like it is working better but I dont know if that's the way you wanted it.....

Code:

        Org    00H

        data_one    equ    P3
        data_ten    equ    P2

        Mynumber    Equ    30H

main_prog:
    MOV    data_ten,#0C0H
        MOV    data_one,#0c0H
        mov    Mynumber,#0
        mov    p1,#0        ;set port 1 as input
        JB     P1.0,up_A
        JB     P1.1,stop_A
        sjmp    main_prog

up_A:   mov    a, Mynumber
        Cjne    A,#99, up
        mov    Mynumber,#0FFH
        sjmp    up

stop_A: mov    a, Mynumber
        Cjne    A,#0, stop
        mov    Mynumber,#99H
        sjmp    stop

up:     inc     Mynumber
        JB    P1.1,stop
        Call    BCD
        call    delay
        mov    a, Mynumber
        Cjne    A,#99, up
        mov    Mynumber,#0FFH
        SJMP    main_prog

stop:   dec     Mynumber
        JB    P1.0,up
        Call    BCD
        call    delay
        mov    a, Mynumber
        Cjne    A,#00, stop
        mov    Mynumber,#100
        SJMP    main_prog

BCD:    Mov     A,Mynumber
        Mov     B,#10
        Div    AB
        call    Seg_conv
        mov    data_ten, A
        mov    A,B
        call    Seg_conv
        mov    data_one, A
        Ret

Seg_conv:    inc     A
        Movc    A, @A+PC
        RET

        DB    0C0H    ; 0
        DB    0F9H    ; 1
        DB    0A4H    ; 2
        DB    0B0H    ; 3
        DB    099H    ; 4
        DB    092H    ; 5
        DB    082H    ; 6
        DB    0F8H    ; 7
        DB    080H    ; 8
        DB    090H    ; 9

delay:  MOV    R5,#0ffh
        MOV    R6,#0ffH
        MOV    R7,#2
delay_loop:    DJNZ    R5,delay_loop
        DJNZ    R6,delay_loop
        DJNZ    R7,delay_loop
        RET

        END

Allen

blueroomelectronics · Feb 21, 2015

Although the simulator won't care, you do need 0.1uF decoupling caps on the CPU.

Your displays should not use a common current limiting resistor but one for each segment. With a 5V supply 330 ohm is typical.

Ian Rogers · Feb 21, 2015

absf said:
mov p1,#0 ;set port 1 as input

Oooh! Port1 will be an out put if you write 0x00 to it..

The easiest way to interface to a micro is normally high, pulled low... and change software to suit!!

Also this line mov Mynumber,#99H Is a tad too high for the BCD convertor...

nikzhafran · Feb 21, 2015

Thank You Ian Rogers ,absf and blueroomelectronics
i have learn many thing today.....
i will do this and if anything probleam i will ask....

set port 1 as input that mean output

Ian Rogers said:
Port1 will be an out put if you write 0x00 to it..

that mean put #0 ?

#sorry for my poor english

Ian Rogers · Feb 21, 2015

The latch on the port of the humble 51 is designed in a way that if a 1 is written to the port pin, the output fet will be off and the port pin goes high.... That means that if a 0 is written to the port pin the fet will be on and a short to ground exists.. If you send a logic 1 into the port pin whilst it's latch is low, there will be magic smoke...

nikzhafran · Feb 21, 2015

hi3 ok2 i understand if 1 it high and 0 is low

Now ,This code if i click stop it will dicrement ..
How to program when i click pushbotton stop it will reset ...

absf said:
stop_A: mov a, Mynumber
Cjne A,#0, stop
mov Mynumber,#99H
sjmp stop

absf said:
stop: dec Mynumber
JB P1.0,up
Call BCD
call delay
mov a, Mynumber
Cjne A,#00, stop
mov Mynumber,#100
SJMP main_prog

should i delete dec or change some code

like mov mynumber,#00h

stop:
JNB P1.0,up ;jump p1.0 = 0
SJMP stop

nikzhafran · Feb 21, 2015

reset i mean back to 00

absf · Feb 21, 2015

Ian Rogers said:
Oooh! Port1 will be an out put if you write 0x00 to it..

The easiest way to interface to a micro is normally high, pulled low... and change software to suit!!

Also this line mov Mynumber,#99H Is a tad too high for the BCD convertor...

You are absolutely right, Ian. I read the HW manual again, and yes it needs logic H to set the port as input and Logic Low as output.

So the circuit has to be changed to detect a LOW input instead of High. I will modify the circuit and post the corrected one again.

Allen

nikzhafran · Feb 22, 2015

This program when i push the button it increment directly 00 to 99 ... .....
How to make program when each time pattern press it incress one by one ( number 0 then we press pattern it will 1 and press again it be 2 ,press again it be 3 and to 99 )

Ian Rogers · Feb 22, 2015

I use a keylock.... Wait for a keypress!! Delay 20mS Wait for key release...

absf · Feb 22, 2015

I hope I have the circuit correct this time...

Change all "JB" to "JNB" in order to detect a low pressed button.

Allen

blueroomelectronics · Feb 22, 2015

Looks good.

nikzhafran · Feb 26, 2015

absf said:
I hope I have the circuit correct this time...

View attachment 90969

Change all "JB" to "JNB" in order to detect a low pressed button.

Allen

code like this ?

Org 00H

data_one equ P3
data_ten equ P2
IPIN EQU P1.0
DPIN EQU P1.1
Mynumber Equ 30H

main_prog:
CALL INIT
AGAIN:

AG2: JB IPIN,AG1
CALL DELAY1 ;debounce
JB IPIN,AG1
JNB IPIN,$ ;wait till switch release
INC MYNUMBER
mov a,mynumber
cjne a,#100,pq1
mov mynumber,#0
pq1:
call bcd ;diaplay data

AG1: JB DPIN,AG2
CALL DELAY1
JB DPIN,AG2
JNB DPIN,$
dec mynumber
mov a,mynumber
cjne a,#255,pq2
mov mynumber,#99
pq2:
call bcd
JMP AGAIN

INIT:
MOV data_ten,#0C0H
MOV data_one,#0c0H
mov Mynumber,#0
mov p1,#255 ;set port 1 as input BY . IT SHOULD BE 1
RET

DELAY1: MOV R4,#255
DJNZ R4,$
RET

BCD: Mov A,Mynumber
Mov B,#10
Div AB

movc dptr,#seg_conv
MOVC A,@A+DPTR ; MOVE DATA @A+DPTR IN A
mov data_ten, A

mov A,B
movc dptr,#seg_conv
MOVC A,@A+DPTR ; MOVE DATA @A+DPTR IN A
mov data_one, A
Ret

delay: MOV R5,#0ffh
MOV R6,#0ffH
MOV R7,#2
delay_loop: DJNZ R5,delay_loop
DJNZ R6,delay_loop
DJNZ R7,delay_loop
RET

Seg_conv:
DB 0C0H ; 0
DB 0F9H ; 1
DB 0A4H ; 2
DB 0B0H ; 3
DB 099H ; 4
DB 092H ; 5
DB 082H ; 6
DB 0F8H ; 7
DB 080H ; 8
DB 090H ; 9

END
