Timer0 in PIC16F72

koolguy

Active Member

• Oct 29, 2013

• #21

Hi,

The problem was i think it has internal RC oscillator i will connect crystal and tell what happen..



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Oct 29, 2013

• #22

Yes!! It can be confusing.. However the newer chips actually have oscillator modules that allow speeds of up to 8Mhz.



jpanhalt

Well-Known Member

Most Helpful Member

• Oct 29, 2013

• #23

Can you point to the section describing the internal oscillator? I could not find it. Moreover, if there is an internal RC oscillator, you would need to include some statements to assign the frequency. You did not include those.

Why not follow the datasheet? It is the best option you have. Have you confirmed that you have a working oscillator? If not, why not?

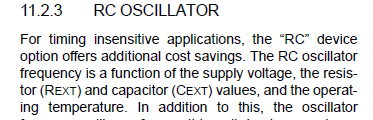

Edit: There is simply no mention of an internal oscillator of any type. Please review this:



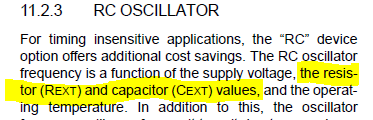

John



Attachments

• upload_2013-10-29_8-11-53.png

  19.3 KB · Views: 160

Last edited: Oct 29, 2013

ericgibbs

Well-Known Member

Most Helpful Member

• Oct 29, 2013

• #24

hi ritesh,
What are the R/C values of your RC Oscillator circuit.?



koolguy

Active Member

• Oct 29, 2013

• #25

hi ritesh,
What are the R/C values of your RC Oscillator circuit.?

Click to expand...

I have misread the data sheet it want external rc so, problem is nothing



P

Pommie

Well-Known Member

Most Helpful Member

• Oct 29, 2013

• #26

OK, I was stupid enough to read the first 1.5 pages. I have been punished. I will not read the next 20. (wait)

Please forgive me.

Mike.



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Oct 29, 2013

• #27

For those of you who are pondering... Ritesh assumed that the chip has an internal RC block, it however, does not so I think he'll apply an extenal crystal..



ericgibbs

Well-Known Member

Most Helpful Member

• Oct 29, 2013

• #28

hi ritesh,
Download this free PIC delay calculator, it should give you guidance on how write an assembler delay loop.
http://www.biltronix.com/picloops.html

Copy and Paste the delay code into your program.
E



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Oct 29, 2013

• #29

I like this one.... It creates C code as well.... It may not help with ASM but I'll include it here
http://eng-serve.com/pic/pic_timer.html



jpanhalt

Well-Known Member

Most Helpful Member

• Oct 29, 2013

• #30

Since Ritesh seems to be interested in Assembly, I suggest PicList as a great resource:


There are a few delay code generators there, but this is the one I use when I don't use Mike McLaren's (K8LH):


Finally, assuming Ritesh settles on 4 to 20 MHz, he might be able to use this code directly (0.5 second at 4 MHz)(from PicList):

Code:

; Delay = 0.5 seconds
; Clock frequency = 4 MHz

; Actual delay = 0.5 seconds = 500000 cycles
; Error = 0 %

cblock
d1
d2
d3
endc
Delay     ;499994 cycles
     movlw 0x03
     movwf d1
     movlw 0x18
     movwf d2
     movlw 0x02
     movwf d3
Delay_0
     decfsz d1, f
     goto $+2
     decfsz d2, f
     goto $+2
     decfsz d3, f
     goto Delay_0

;6 cycles
     goto $+1
     goto $+1
     Return

I usually leave out the fine tuning (i.e., the two goto $+1's at the end).
John



Last edited: Oct 29, 2013

large_ghostman

Well-Known Member

Most Helpful Member

• Oct 29, 2013

• #31

Ritesh if you have given up on C and now going with ASM then take a look at nigels page he has loads of tutorials for ASM, but can i ask why the move from C??



koolguy

Active Member

• Oct 29, 2013

• #32

why the move from C??

Click to expand...

to understand pic arch more deeply for its use..



ericgibbs

Well-Known Member

Most Helpful Member

• Oct 30, 2013

• #33

Little Ghostman said:

Ritesh if you have given up on C and now going with ASM then take a look at nigels page he has loads of tutorials for ASM, but can i ask why the move from C??

Click to expand...

hi LG,
This what Ritesh said in his opening post.
I was reading data sheet and want to learn Timer0 in assembly
and why not.?
E



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Oct 30, 2013

• #34

Ritesh!! I've posted a simple interrupt article.... Any comments would be well received..

Just click "Articles" on the menu banner..
