Ultrasonic transducer driver circuit

SimonTHK

Member

• Jun 30, 2011

• #1

Hello Electro tech online

I want to build an ultrasonic cleaner as a weekend project

I will be using these transducers: **broken link removed**

I know how to make a circuit that provides the frequenze, but what should drive the transducers? A very big transistor?

Thanks in advance



SimonTHK

Member

• Jul 5, 2011

• #2

bumpp



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jul 5, 2011

• #3

Why build one!!! I cant make it for this price..https://proto-pic.co.uk/products/Low-cost-Ultrasonic-Ranger.html



ericgibbs

Well-Known Member

Most Helpful Member

• Jul 5, 2011

• #4

Ian Rogers said:

Why build one!!! I cant make it for this price..https://proto-pic.co.uk/products/Low-cost-Ultrasonic-Ranger.html

Click to expand...

hi Ian,
The OP wants a medium power ultrasonic cleaner.



Last edited: Jul 5, 2011

ericgibbs

Well-Known Member

Most Helpful Member

• Jul 5, 2011

• #5

hi Simon,
You could wind your own 40KHz power transformer



Attachments

• Applicatin of Multiple Frequency Ultrasonics 050630.pdf

  427 KB · Views: 1,129
• datasheet.pdf

  118.2 KB · Views: 669

Last edited: Jul 5, 2011

debe

Active Member

• Jul 5, 2011

• #6

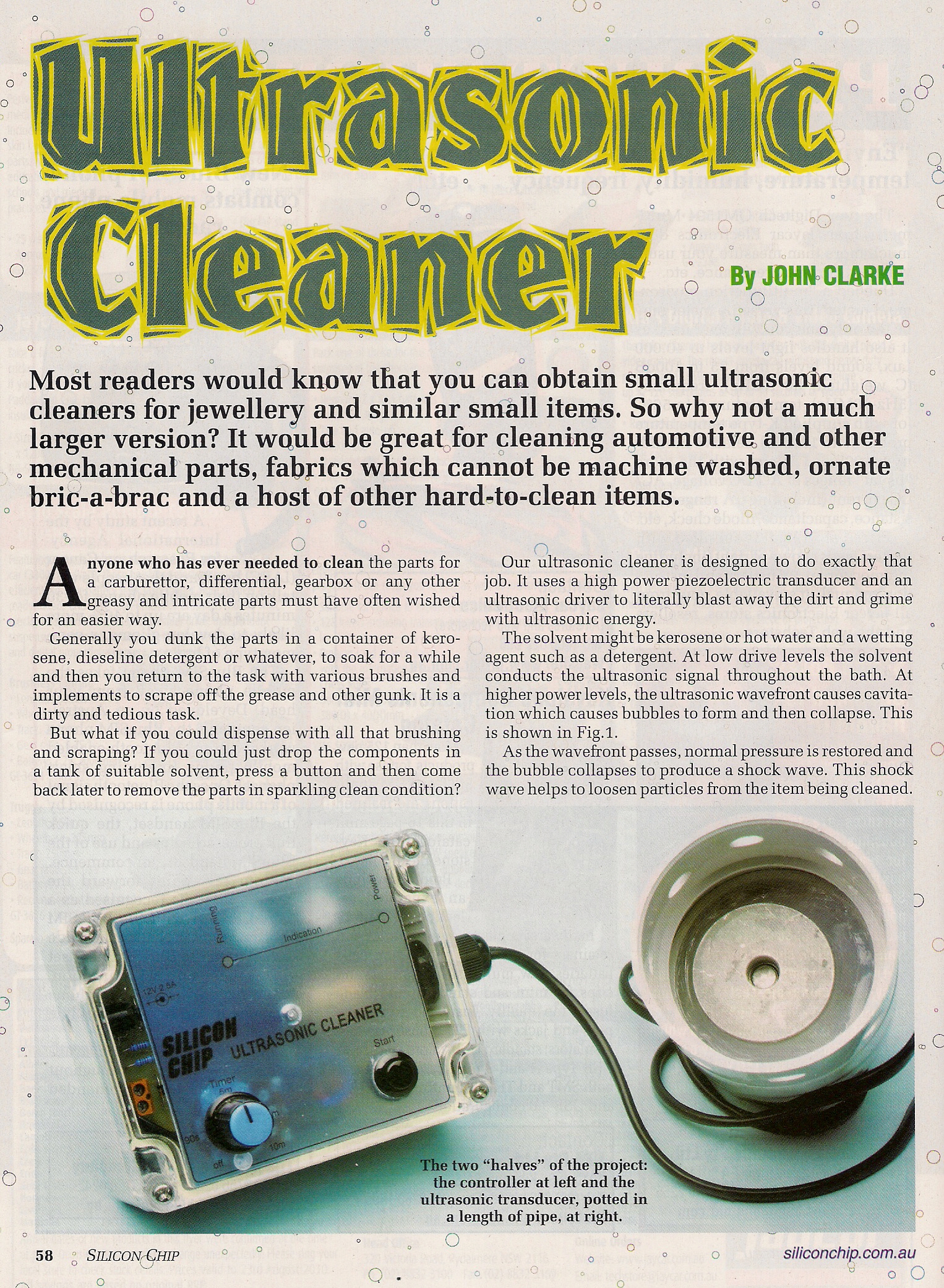

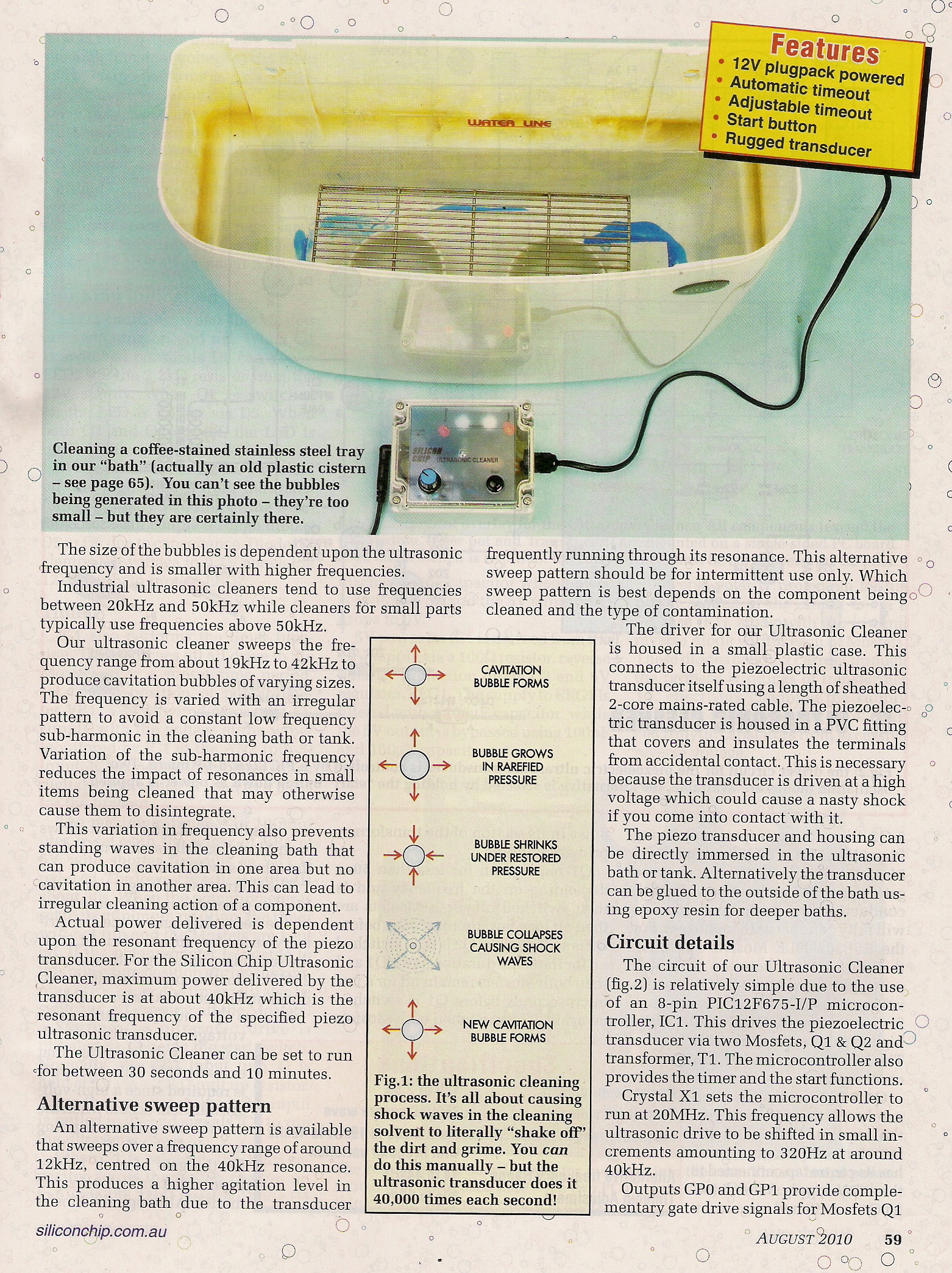

Kit avalable from Jaycar KC5499 @ $199 mutch cheaper than an equv comercial unit here. Its powered from 12V dc @2.5A. The transducer is driven with 250V AC squarewave. The PIC micro comes pre programed that drives it.



Attachments

• ULTRASONIC Clean.jpg

  2.5 MB · Views: 1,762
• ULTRASONIC Clean2.jpg

  2.5 MB · Views: 1,085

Last edited: Jul 5, 2011

Sceadwian

Banned

• Jul 5, 2011

• #7

What about ultrasonic humidifer elements, couldn't they be used for ultrasonic cleaning if the tub was redesigned, and frequency lowered a harmonic or two?



T

tgcm

New Member

• Apr 20, 2013

• #8

hi everyone.

I want to ask how can I fit ultrasonic transducer in biodecontaminamination machine for increasing penetration efficiency?
Do you have any idea?
