Hey guys I back!! Xtal help please!

D

dasatboy

New Member

• Jul 9, 2008

• #1

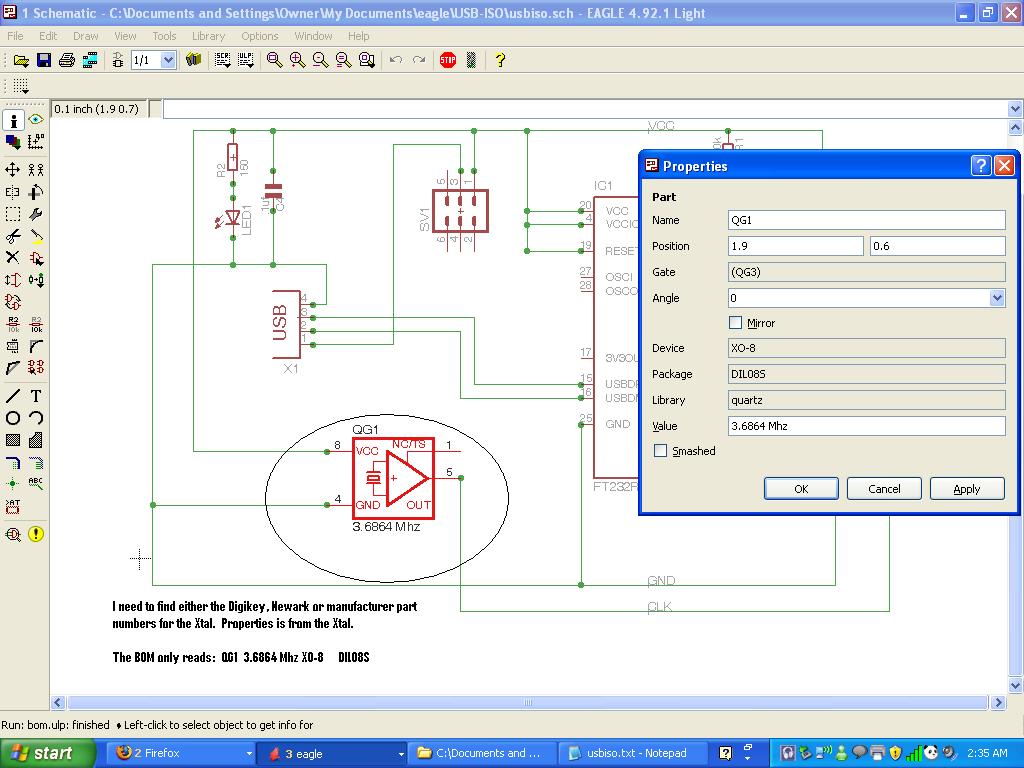

I have a schematic I would like to try to make. How ever I can't seem to find the part number to order the Xtal. Can anyone figure this out for me?? crysatl needs to be a 3.6864mhz. Attached is the schematic and the info from the Xtal


ThankX



Attachments

• USB-crystal.JPG

  115.6 KB · Views: 271

Last edited: Jul 9, 2008

D

Diver300

Well-Known Member

Most Helpful Member

• Jul 9, 2008

• #2

It's an oscillator, not a crystal. It contains a crystal, but it is not a crystal like a car is not an engine.

AEL CRYSTALS | O3M686400L120 | Frequency Control | Passives | Farnell UK is what you want.



D

dasatboy

New Member

• Jul 9, 2008

• #3

Jeeze I should have known that!! LMAO. Too damb early for this!! Thank You



Last edited: Jul 9, 2008

M

mneary

New Member

• Jul 10, 2008

• #4

Digikey? I put 3.6864 into their parts search window and get 112 different oscillators. I filter for in stock and it's 82. I filter for DIL8 (dual inline 8 pins) and have 9 to choose from. Some are 3.3V, some 5V, RoHS and not.



D

dasatboy

New Member

• Jul 23, 2008

• #5

DIL8 (dual inline 8 pins)

Click to expand...

This is not in the criteria for digikey to choose from! Hmm still looking!



K

kchriste

New Member

Forum Supporter

• Jul 23, 2008

• #6

But "Half Size (8-DIP - 4-Pin)" is. Do you want 5V:
**broken link removed**
Or 3.3V:
http://search.digikey.com/scripts/DkSearch/dksus.dll?Detail?name=535-9197-5-ND



D

Diver300

Well-Known Member

Most Helpful Member

• Jul 23, 2008

• #7

**broken link removed**

Any frequency in the 1 - 80 MHz range is available.
