So I'm doing pipelined datapaths and i'm finding it very hard to understand.I'm familiar with single and multiple clock cycle datapaths but pipelined is proving to be a problem.

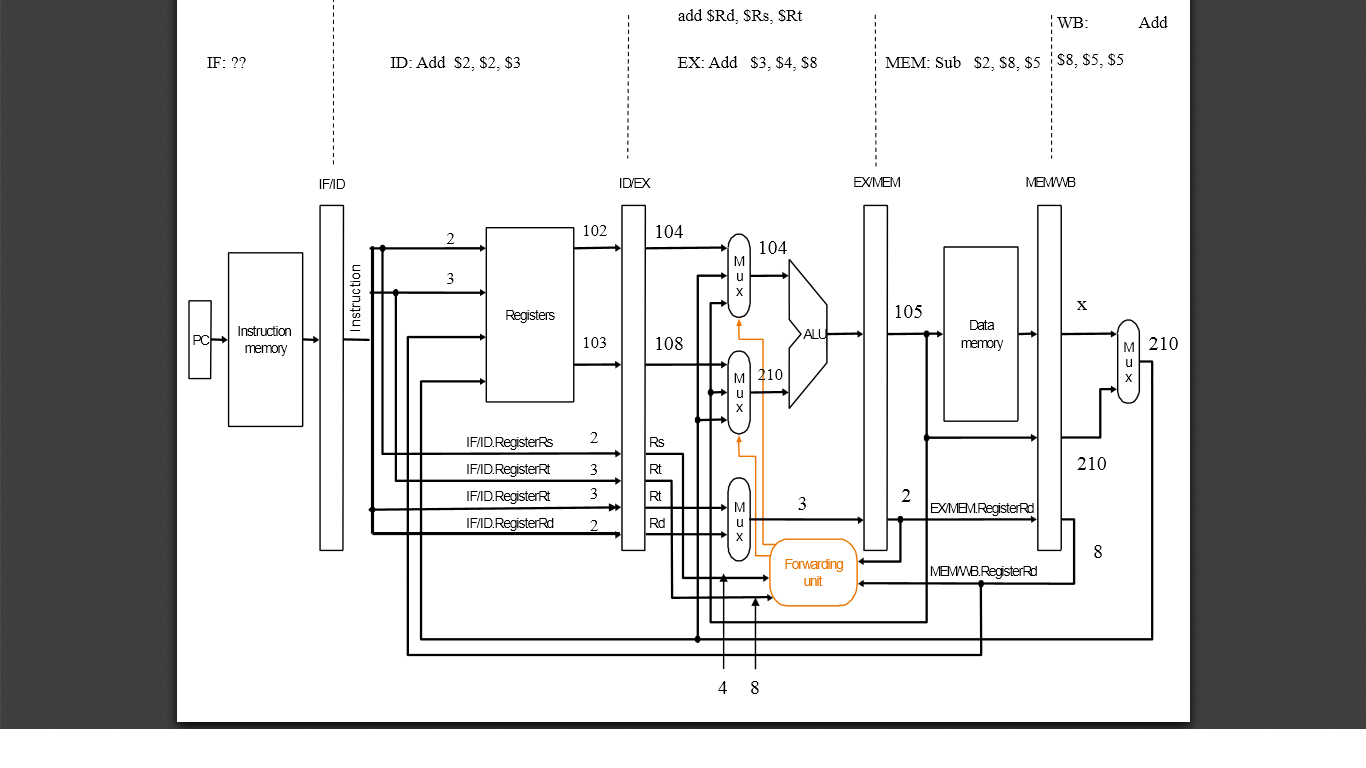

I've attached a picture of the datapath,I dont understand how they got the values 104 and 108 in the ID/EX stage.Also the 105 in the EX/MEM stage as well as the 210 in the MEM/WB stage.
All registers initially have 100 stored in them.Anyone care to explain this?the whole forwading thing is pretty confusing as well,
