Quxk electromagnet help

unclejed613 · Jan 24, 2010

here's what's different between the two, you can see that the lines of force are concentrated on the coaxial magnet and spread out on the axial one.

Njguy · Jan 24, 2010

^Thanks for that, it's very interesting, still have no idea how it's wired though.

unclejed613 · Jan 24, 2010

for whatever rated voltage, + to one wire. - to the other. reversed polarity gets N and S reversed, still works as an electromagnet. not a lot to it.

Njguy · Jan 24, 2010

unclejed613 said:
for whatever rated voltage, + to one wire. - to the other. reversed polarity gets N and S reversed, still works as an electromagnet. not a lot to it.

Ok, but that doesn't really explain how it's wired, unless I am misunderstanding you.

unclejed613 · Jan 24, 2010

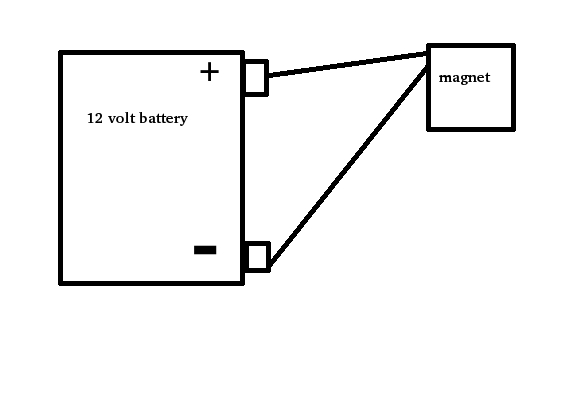

like this...

Njguy · Jan 24, 2010

unclejed613 said:
like this...View attachment 38146

well obviously...i'm talking about the internal wiring of a co-axial electromagnet. I have made electromagnets, a third grader could have told me that.

unclejed613 · Jan 24, 2010

sorry about that, but the actual question was that vague.
it's a single coil exactly like the axial solenoid, so there is no difference with regards to the wire.
the opposite pole piece is wrapped back around as a shell over the coil, much like a speaker magnet.
