Hi all,
A workmate donated a dead uninterrupible power supply to me to dissect, and out of the bargain I get:
1 large transformer, unknown ratings
1 small HF transformer, unknown ratings
1 LM324N quad op-amp
4 RFP50N06 50A MOSFETs (T0-220 packages, bolted to 2 aluminum block heatsinks)
1 IRFZ34N MOSFET (no heatsink)
1 LM317 regulator ((T0-220 package, bolted to a smaller aluminum block heatsink)
1 12V 5.0AH SLA battery, possible (probably?) dead
So I was thinking about what to do with this. I haven't built an H-bridge yet and was thinking the RFP50N06s might be good for that (datasheet here). I was also wondering whether the inverter section of this thing might be modified to output a somewhat closer approximation of a sine wave for possible use in my truck. I'm clearer on how H-bridges work, though, so I'm leaning that way.
Anybody have any hints on designing a decent H-bridge around a given set of MOSFETs? I think from the datasheet that I should be able to build something pretty hefty for hobby use with these.
Links to good reading on H-bridge design are also welcome--I've already googled around quite a bit but wouldn't mind some recommendations from people here.

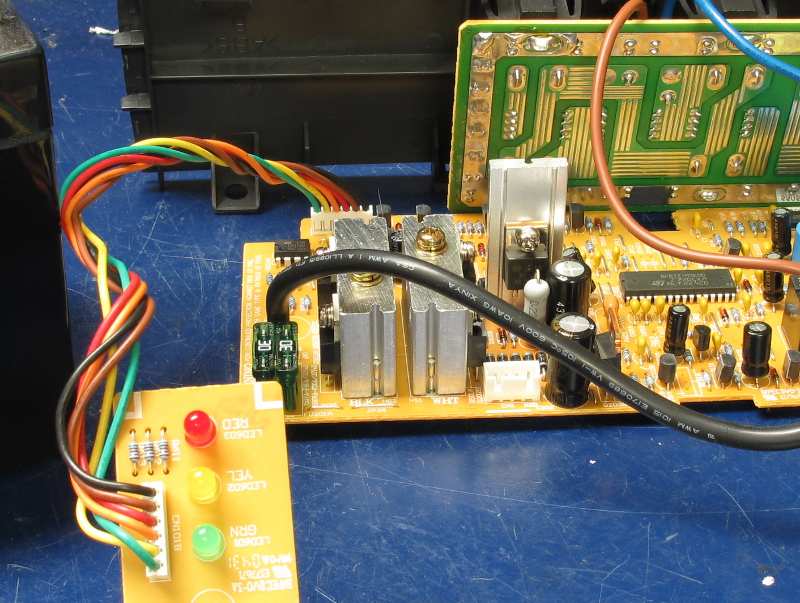

Another question: any thoughts on how to work out the thermal transfer characteristics of the heatsinks is welcome. Here's a picture of the heatsinks:
![IMG_3141-1.JPG IMG_3141-1.JPG](https://www.electro-tech-online.com/data/attachments/33/33143-5db14652d4a1e2a9a07f426248c94f70.jpg)
Thanks for any ideas,
Torben
