Transfering DATA between two pics via SPI OSHONSOFT

[jjw]

I meant, that in testing the SS can be at 0 permanently.
When using multiple SPI devices the Slave has to be setup every time before using it.



[camerart]

I meant, that in testing the SS can be at 0 permanently.
When using multiple SPI devices the Slave has to be setup every time before using it.

Hi J,
I've tried all sorts of combinations of SS, but it only seems to work with [ SLAVEpic = 0 ] at the beginning and [ SLAVEpic = 1 ] at the end of the MASTER LOOP, otherwise nothing appears in the analyser.

EDIT: I added a toggling LED in SLAVE MAIN LOOP. This still flashes whether SS is [ 0 ] or [ 1 ] does this seem correct?
EDITEDIT: [ 1 ]
C.



[jjw]

Hi J,
I've tried all sorts of combinations of SS, but it only seems to work with [ SLAVEpic = 0 ] at the beginning and [ SLAVEpic = 0 ] at the end of the MASTER LOOP, otherwise nothing appears in the analyser.

EDIT: I added a toggling LED in SLAVE MAIN LOOP. This still flashes whether SS is [ 0 ] or [ 1 ] does this seem correct?
C.

I tried to tell it in #160, #161
What do you see in the analyzer?
Show the main loop.



[camerart]

I tried to tell it in #160, #161
What do you see in the analyzer?
Show the main loop.

Hi J,
I followed what you suggested in #160 #161, and set up the best I can, I find it easy to get mixed up, so I'll keep posting the whole programs and results as they change in the hope that you or someone can spot any mistakes. An alternative is that you edit the programs, and I'll test them, where there would be no misinterpretation by me. I don't mind either way.

Here's the 2x programs, and result.
C



[jjw]

Remove from the slave SSPBUF = azi.lb



[camerart]

Remove from the slave SSPBUF = azi.lb

Hi J,
MASTER as #164
SLAVE and Result:
C



[jjw]

Hi J,
I've tried all sorts of combinations of SS, but it only seems to work with [ SLAVEpic = 0 ] at the beginning and [ SLAVEpic = 0 ] at the end of the MASTER LOOP, otherwise nothing appears in the analyser.

EDIT: I added a toggling LED in SLAVE MAIN LOOP. This still flashes whether SS is [ 0 ] or [ 1 ] does this seem correct?
C.

So something appeared in the analyzer, what was it?
Now SDI in Master seems to be stuck at 1.



[jjw]

Hi J,
MASTER as #164
SLAVE and Result:
C

I don't know what to do.
Here is a tutorial of PIC to PIC Spi:

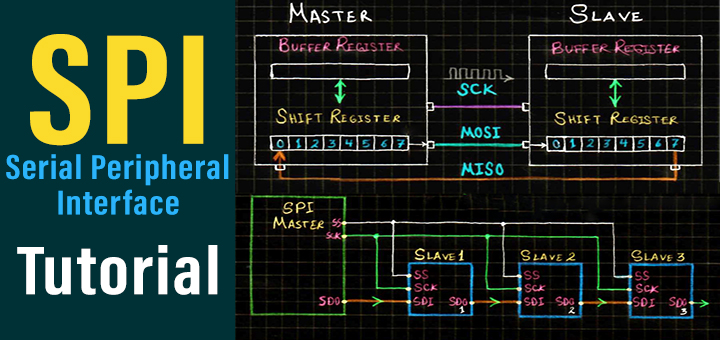

SPI Tutorial With PIC Microcontrollers | Serial Peripheral Interface

SPI with PIC MCUs. How it works and how to establish Communication Between 2 Microcontrollers. SPI Clock Phase and Polarity Explained

deepbluembedded.com

Maybe it helps.



[camerart]

So something appeared in the analyzer, what was it?
Now SDI in Master seems to be stuck at 1.

Hi J,
As #163 if there is SS ON in Master with no SS OFF, then it sticks. This is how I interpreted your #161.

If I add OFF back into the MASTER program [ SLAVEpic = 1 ] then it shows [ 255 ]

I've edited an error in #162.
C.



[camerart]

I don't know what to do.
Here is a tutorial of PIC to PIC Spi:

SPI Tutorial With PIC Microcontrollers | Serial Peripheral Interface

SPI with PIC MCUs. How it works and how to establish Communication Between 2 Microcontrollers. SPI Clock Phase and Polarity Explained

deepbluembedded.com

Maybe it helps.

Hi J,
I already have the Tutorial, but the clocks and other settings etc confuse me, but I'll keep checking, thanks.
c.
