what is this circuit called?

R

rollingondubs

New Member

• Jan 3, 2010

• #1

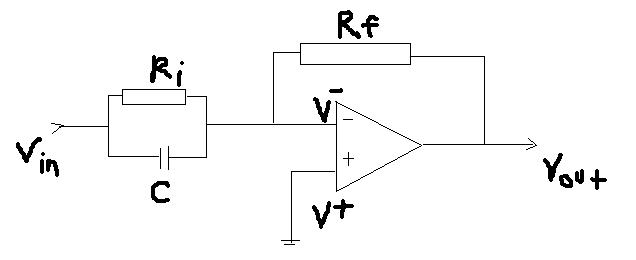

hi, could someone please tell me what type of circuit this is? thanks



Attachments

• amplifier circuit.JPG

  12.2 KB · Views: 429

RCinFLA

Well-Known Member

• Jan 3, 2010

• #2

Differentiator but depends on value of Ri.



JimB

Super Moderator

Most Helpful Member

• Jan 4, 2010

• #3

It could also be considered as a high-pass filter.
JimB



Roff

Well-Known Member

• Jan 4, 2010

• #4

It's called an augmented differentiator.
