5,5KVA Generator Electrical Circuit Diagram...

Status
Not open for further replies.
HD ELEKTRONİK

HD ELEKTRONİK

Member
(I post after Fig.'s).


Attachments

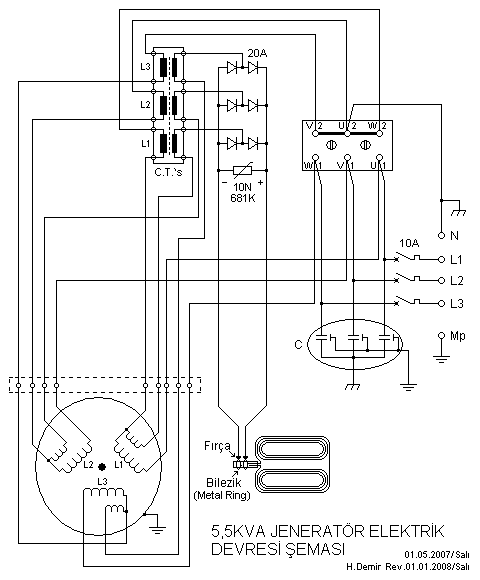

  • 5,5KVA Jeneratör Elektrik Devresi Şeması.png
    5,5KVA Jeneratör Elektrik Devresi Şeması.png
    3.9 KB · Views: 13,796
So what?


.

Hayrettin Demir said:
(I post after Fig.'s).
Click to expand...

This is Fig.'s.
Maybe some friend will make.


Attachments

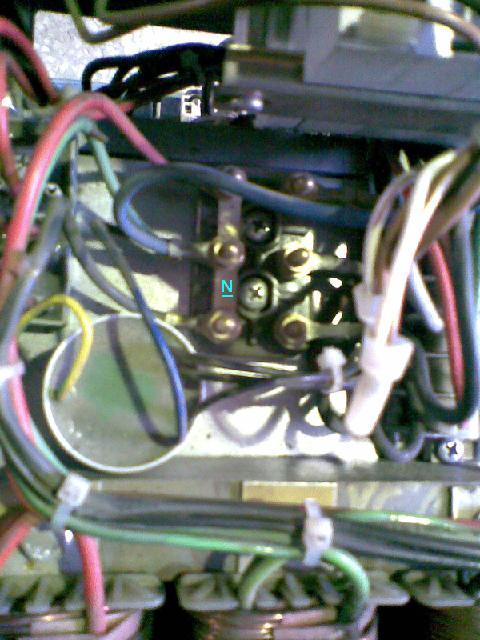

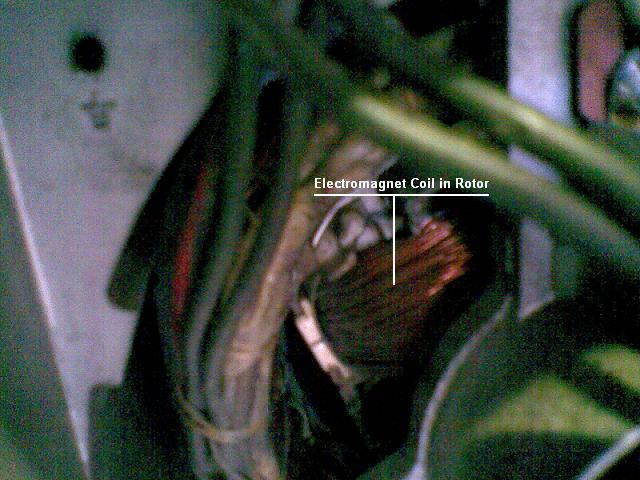

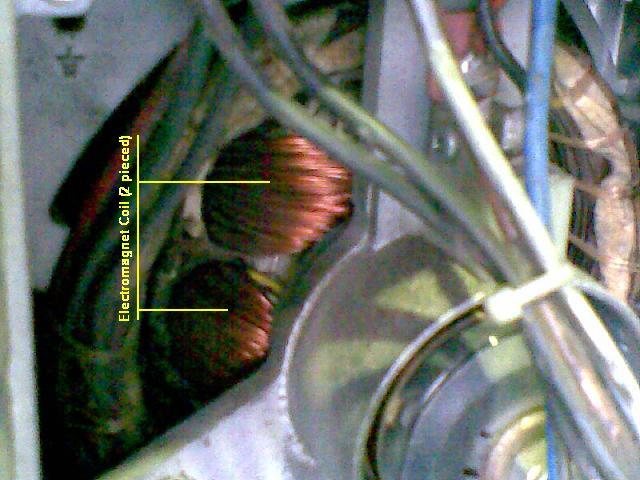

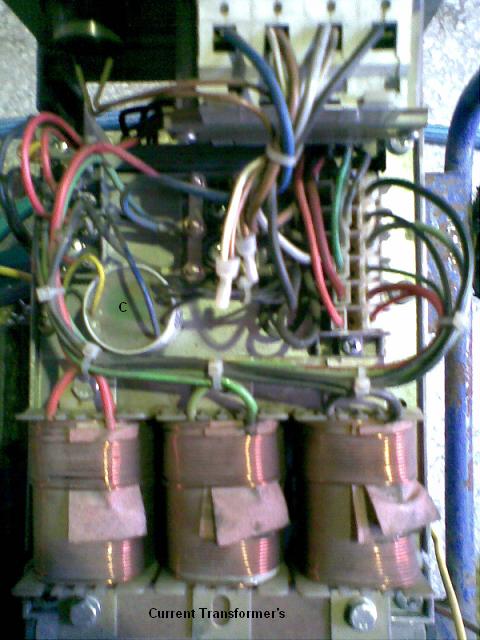

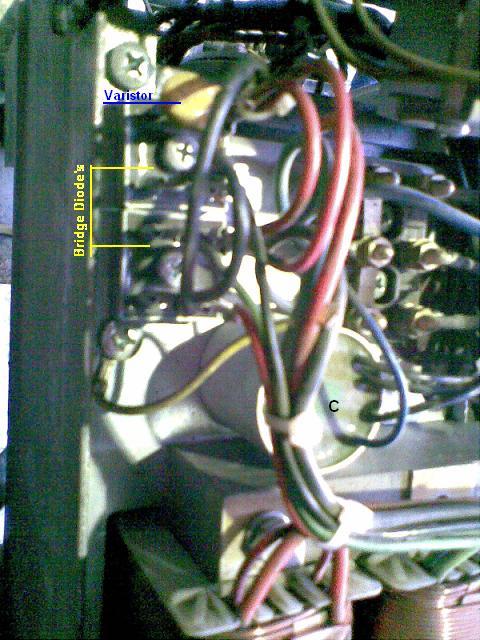

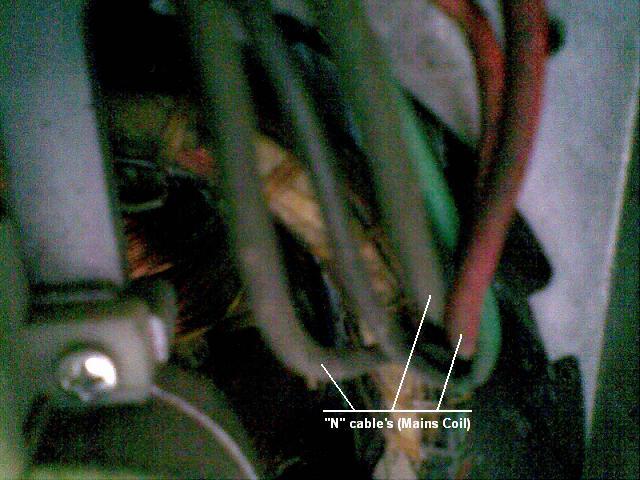

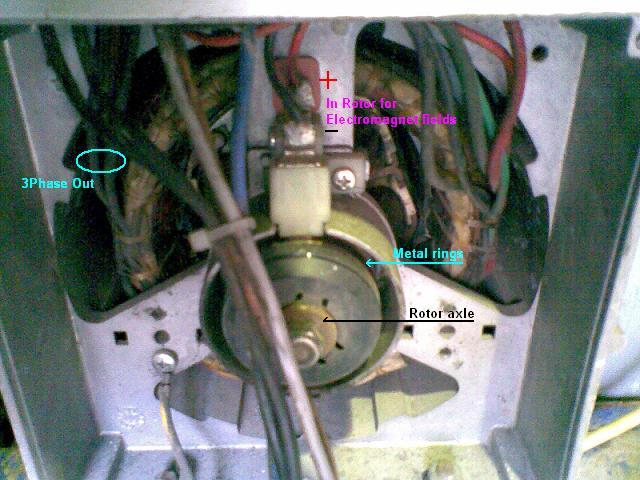

  • 9HP Gen.jpg
    9HP Gen.jpg
    57.7 KB · Views: 909
  • 9HP Gen1.jpg
    9HP Gen1.jpg
    56 KB · Views: 695
  • 9HP Gen2.jpg
    9HP Gen2.jpg
    58 KB · Views: 687
  • 9HP Gen6.jpg
    9HP Gen6.jpg
    68.2 KB · Views: 628
  • 9HP Gen9.jpg
    9HP Gen9.jpg
    53.1 KB · Views: 819
  • 9HP Gen12.jpg
    9HP Gen12.jpg
    52.9 KB · Views: 489
  • 9HP Gen7.jpg
    9HP Gen7.jpg
    55.7 KB · Views: 750
Status
Not open for further replies.
