Time d..............elay circuit.

Status
Not open for further replies.
in your diagram, make the capacitors from base to ground and increase 1k. also use a discharging capacitors when you connect so.

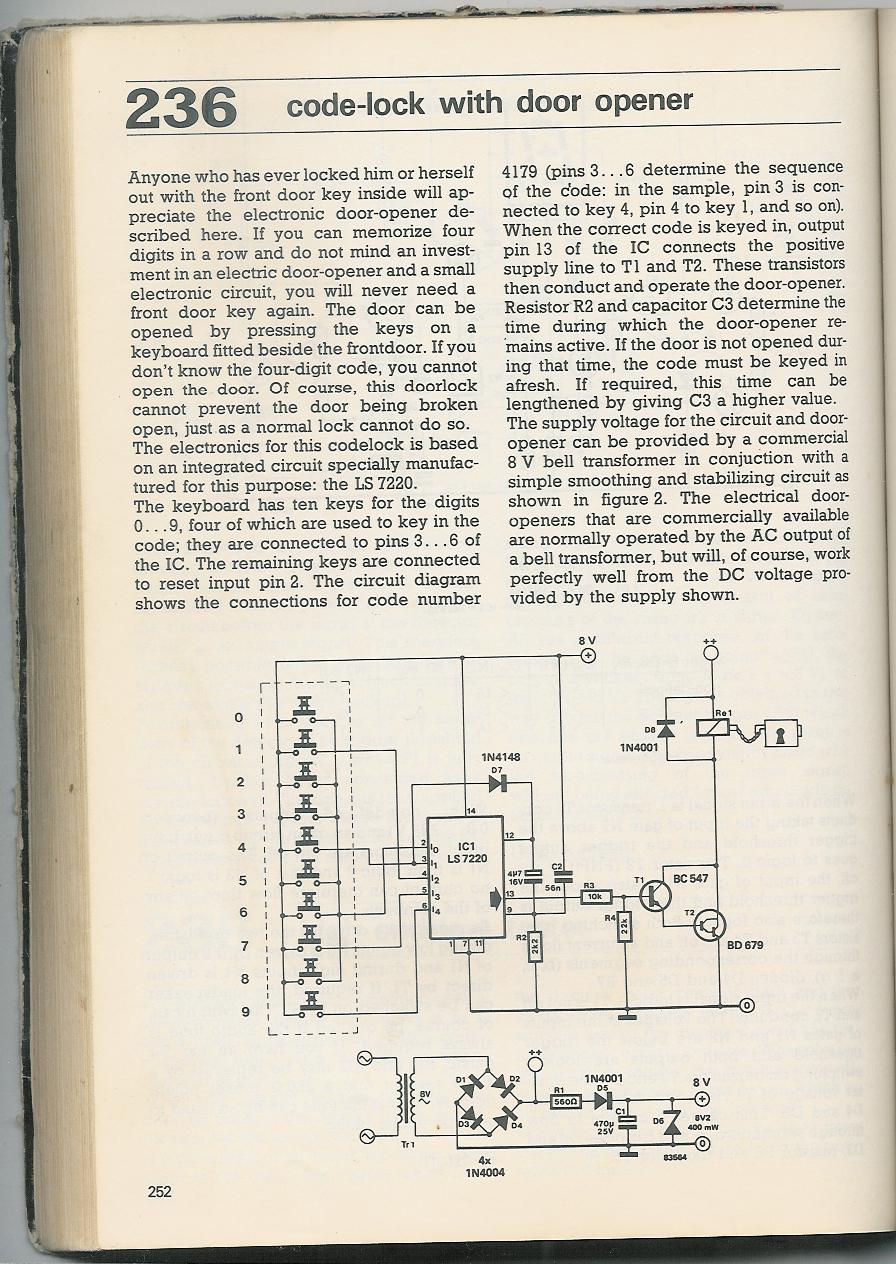

see the attached schematic for a code lock, it can be helpful to you for the part of lock


Attachments

  • code lock..jpg
    code lock..jpg
    224.6 KB · Views: 116
why increase the values? what do you mean by discharging capacitors, im using electrolytics. is this shchemtic relevant for an alarm or an actual lock. im looking for a keypad entry to basicaly disable the alarm.
